| Technical Specifications | |
| Model | Capacity |
| DM – 30 | 30 tph |
| DM – 50 | 50 tph |
| DM – 70 | 70 tph |
| DM – 90 | 90 tph |
| DM – 120 | 120 tph |
| Technical Specifications | |
| Model | Capacity |
| DM – 30 | 30 tph |
| DM – 50 | 50 tph |
| DM – 70 | 70 tph |
| DM – 90 | 90 tph |
| DM – 120 | 120 tph |

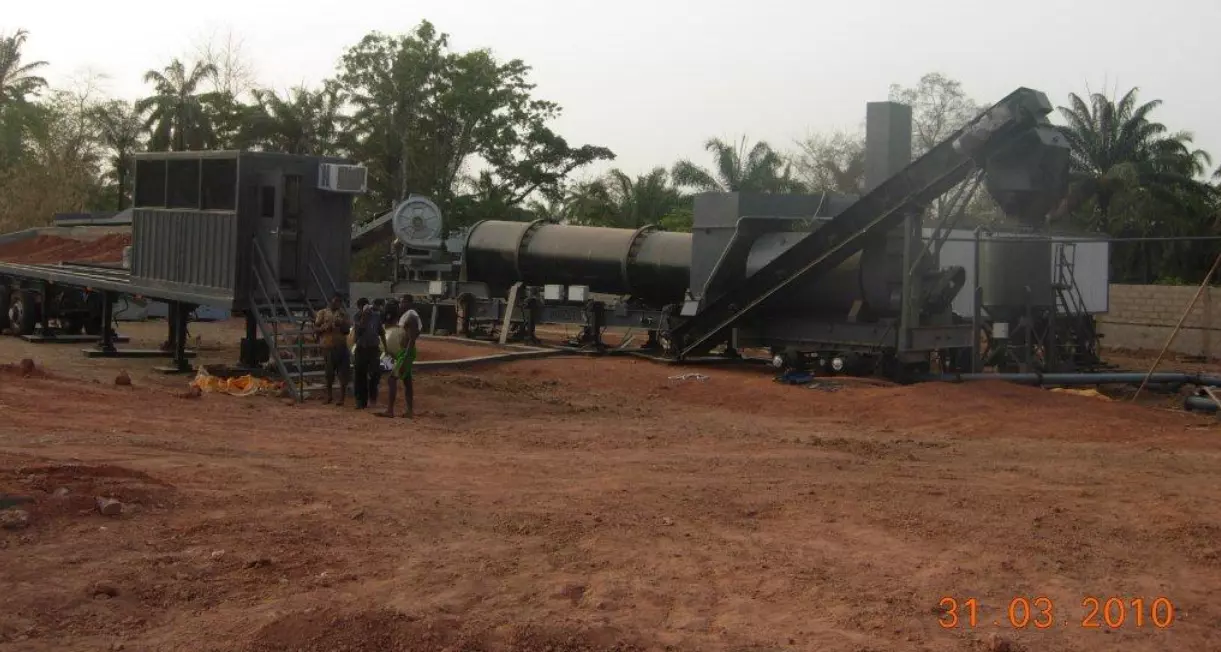

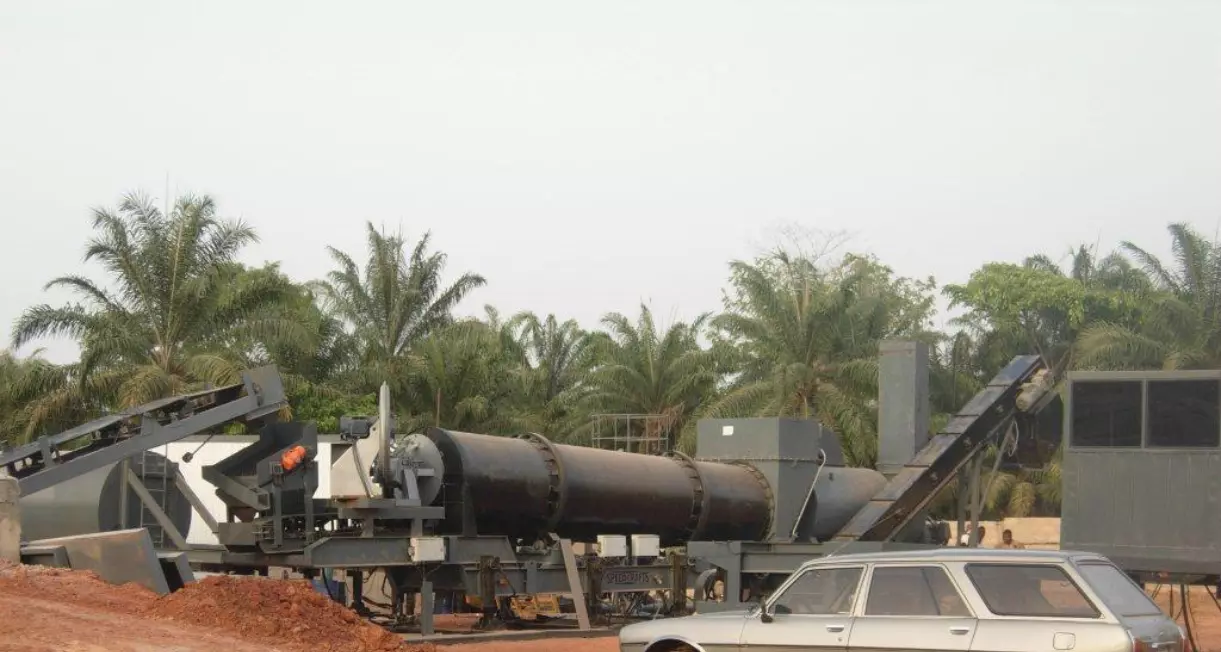

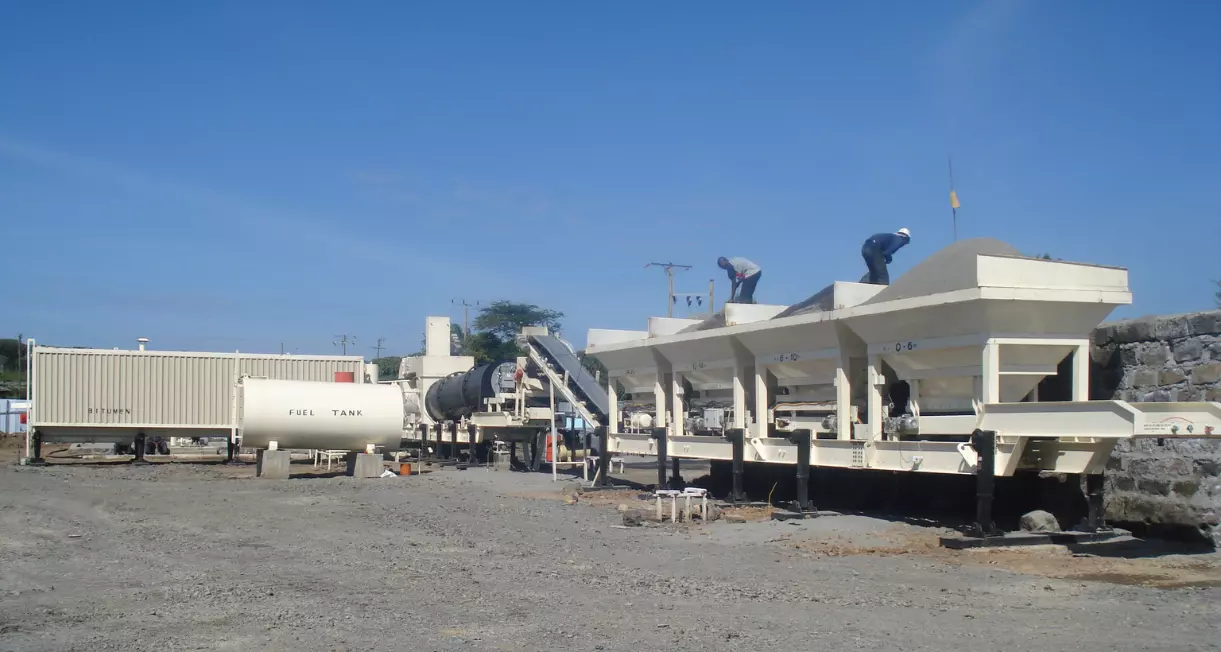

New Generation Drum Mix Asphalt Plants:
Plants are well built to meet tough working conditions, constructed of heavy duty steel and high quality parts.

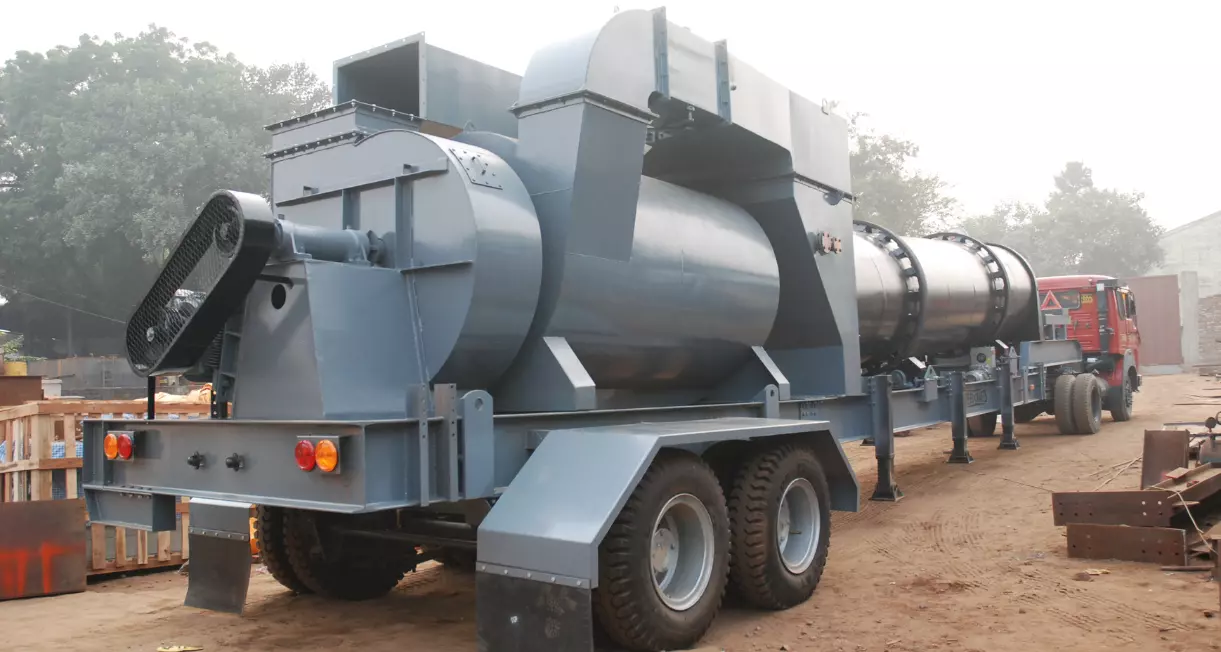

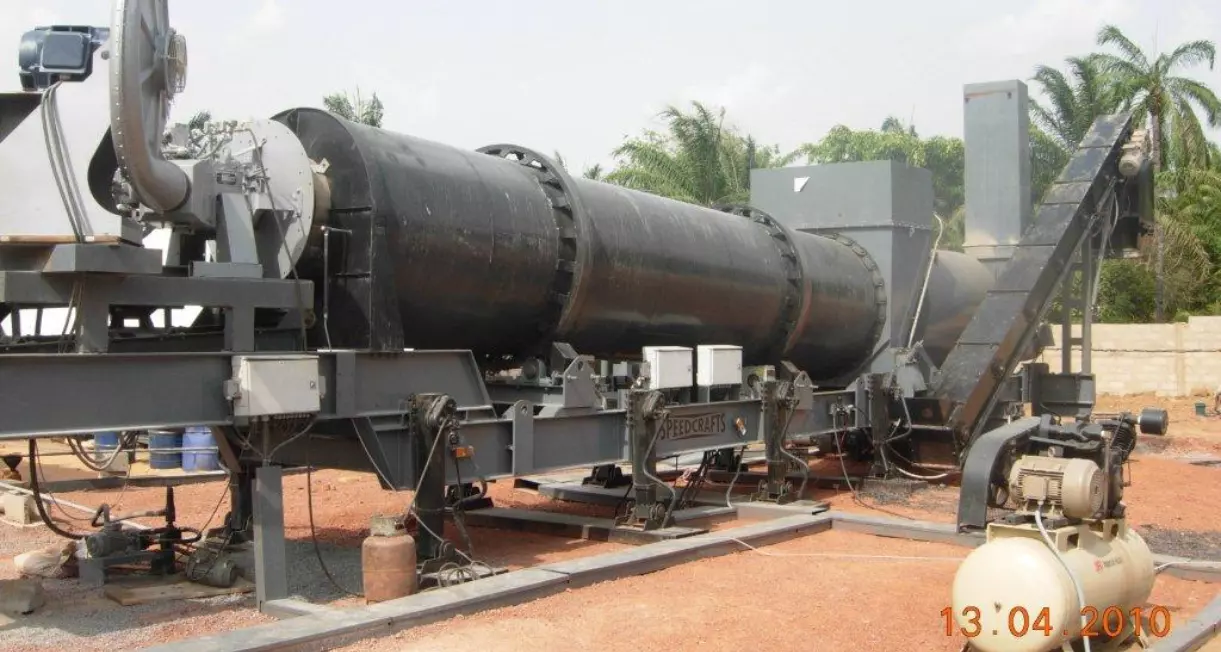

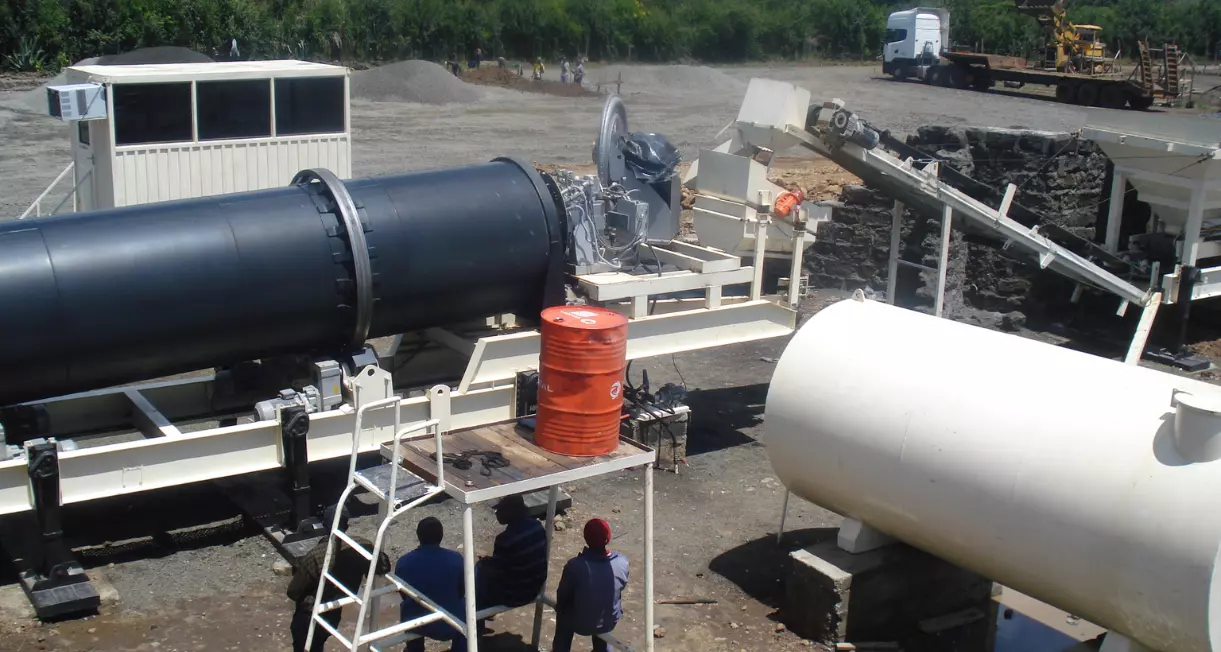

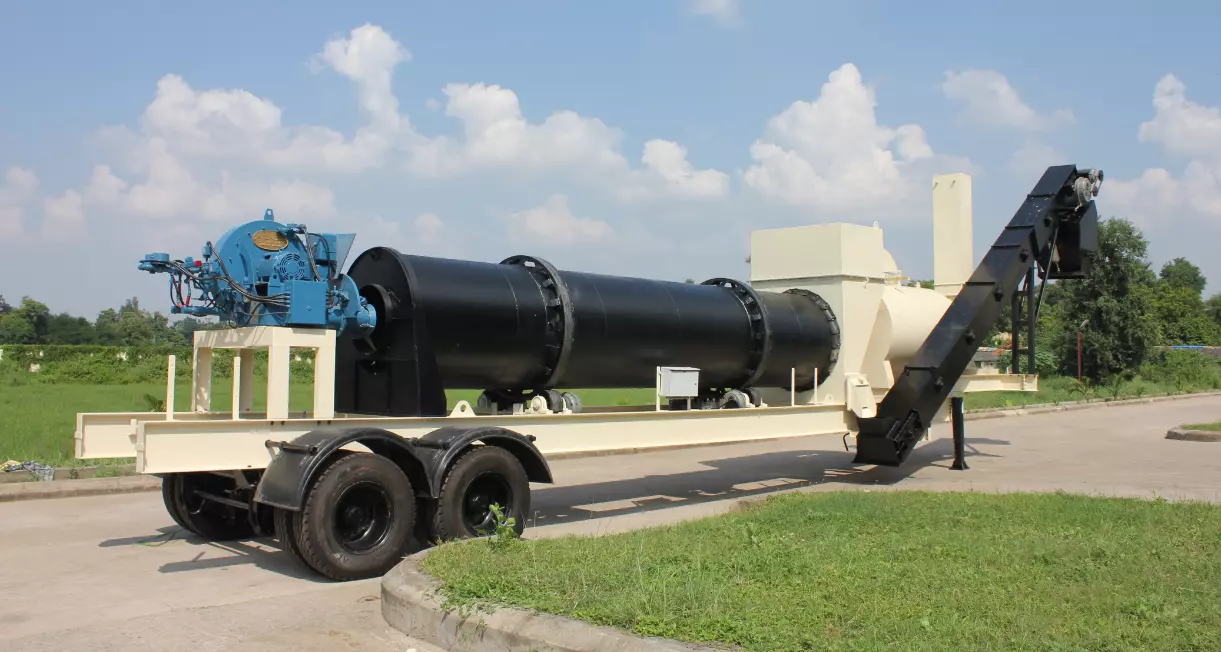

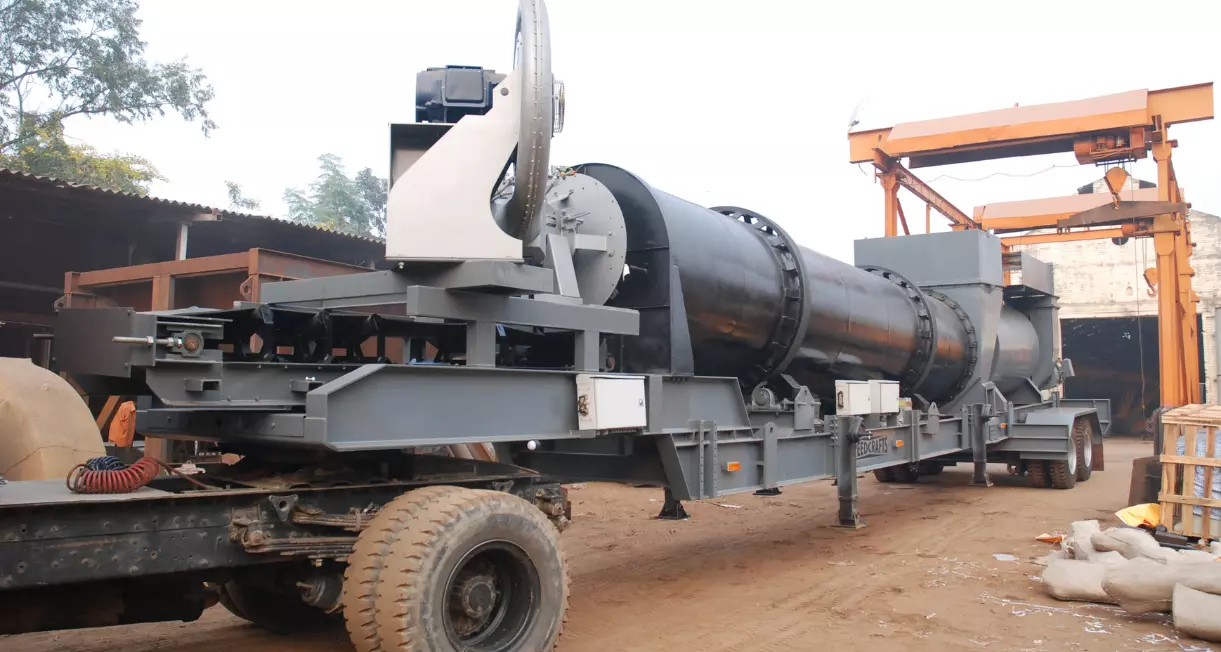

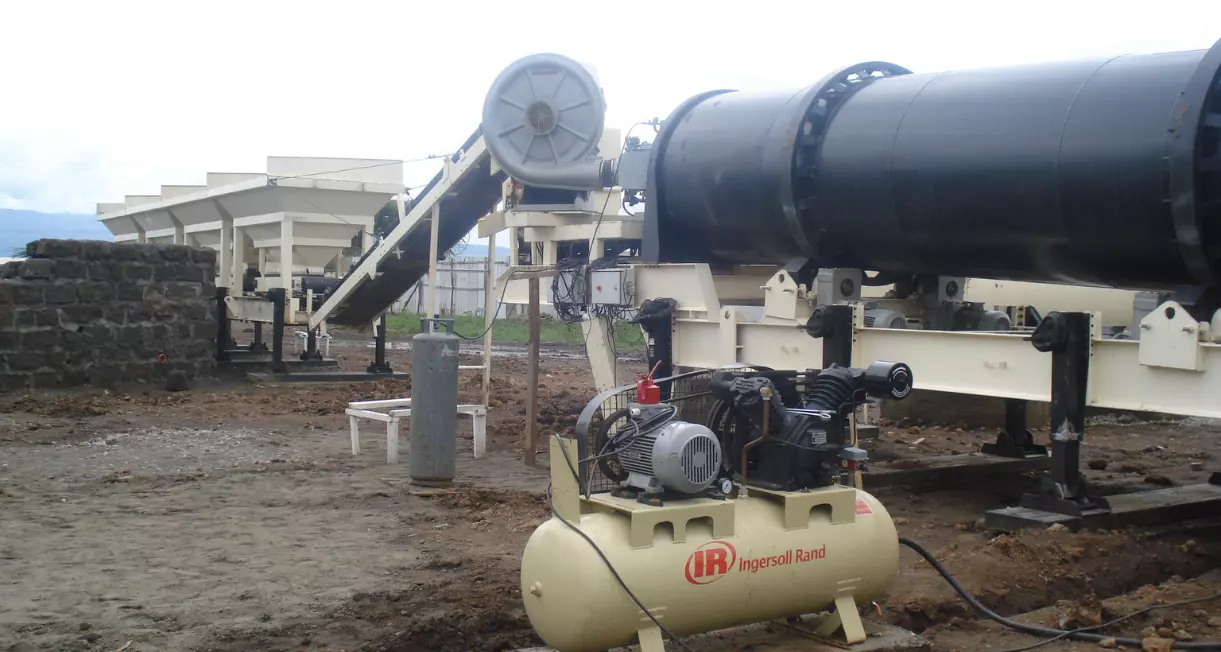

Drum mixers are constructed of C-45 steel plate for longer life. Main frame is built with large structural beams for extra strength. Drum shell is coated with heat resistant paint for heat retention. Drum is provided with friction drive through four trunnions and individual gears. Proven flight design ensures maximum heat transfer and mixing.

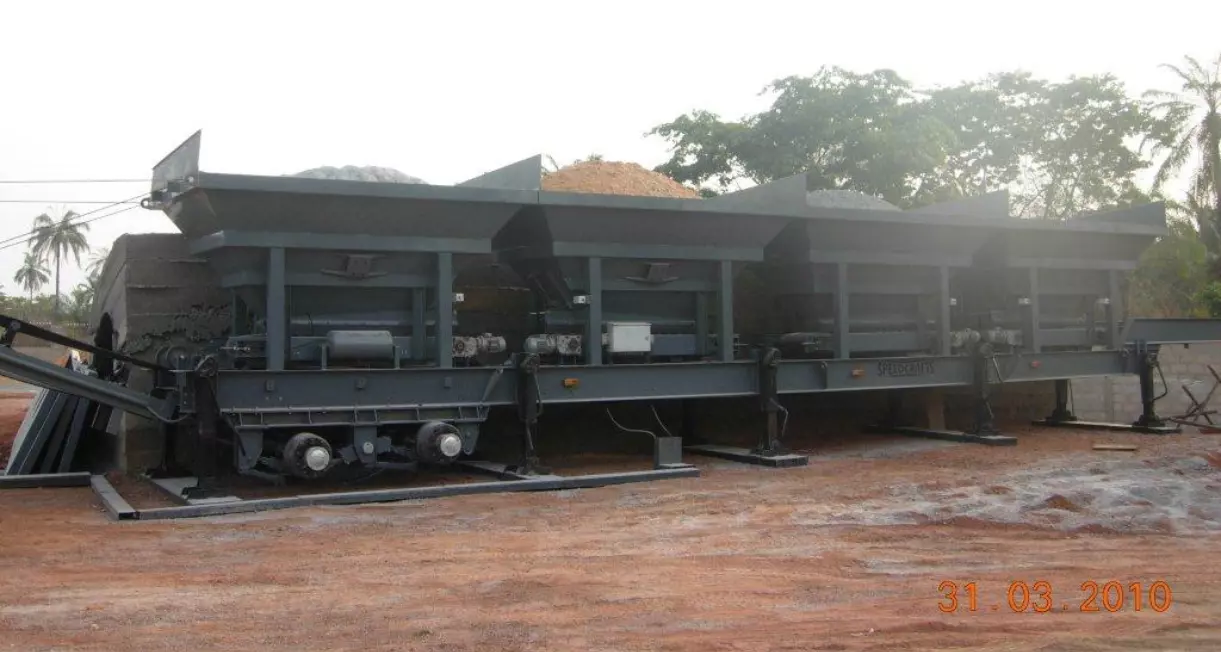

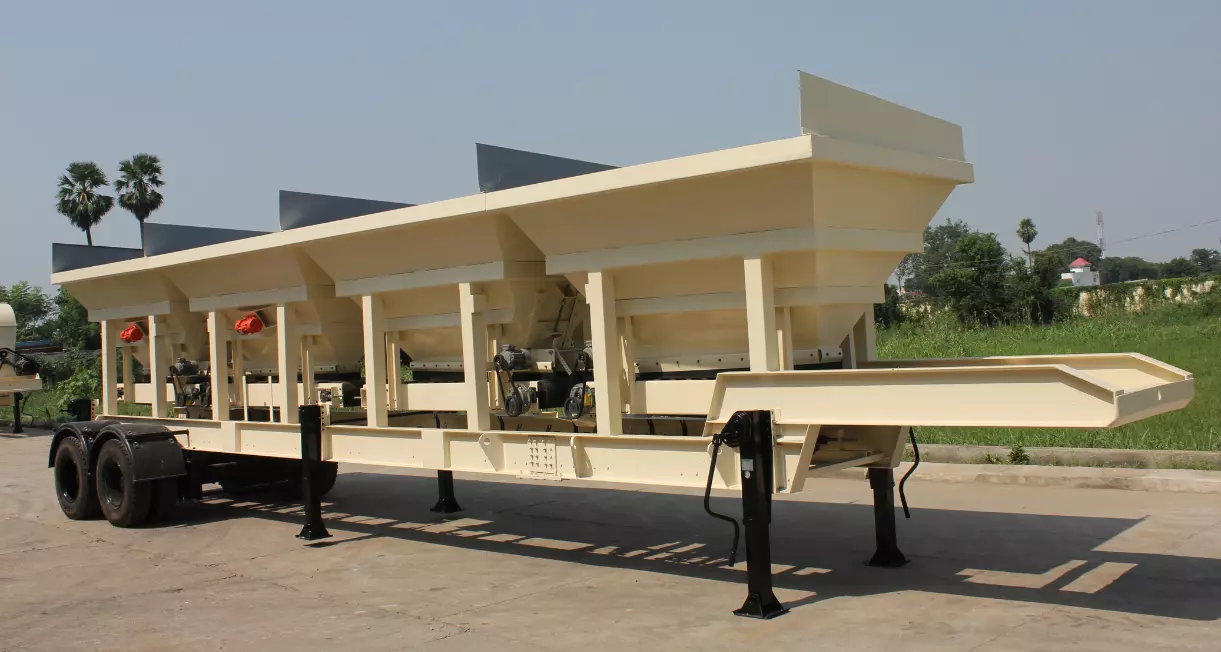

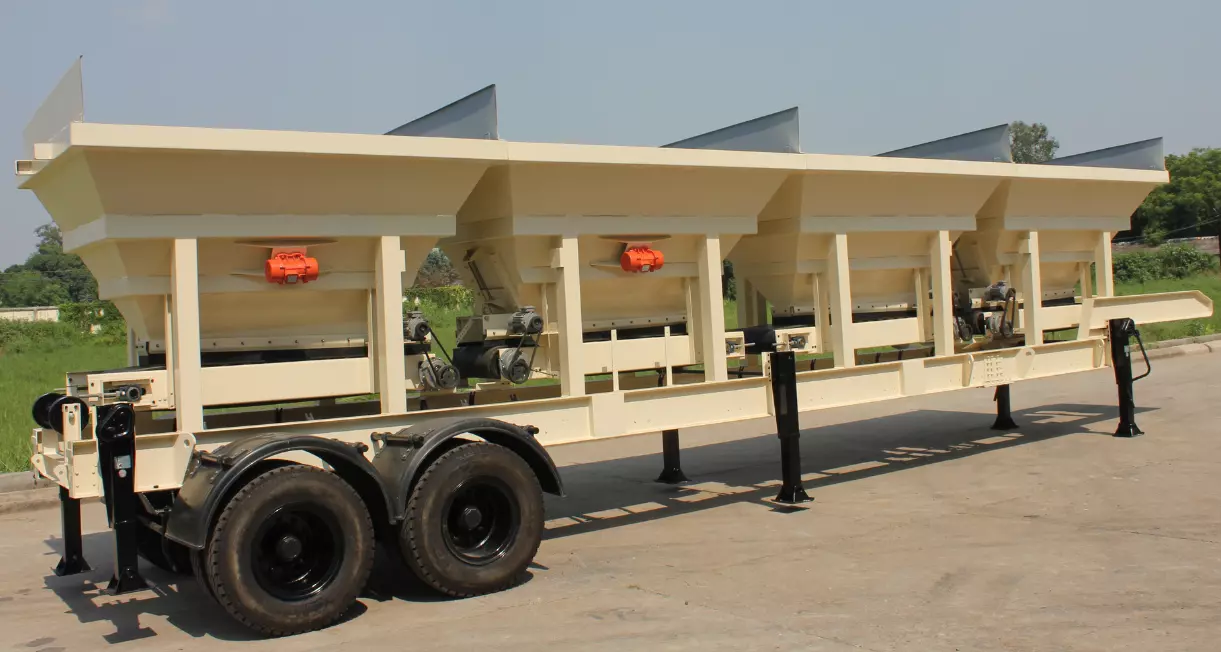

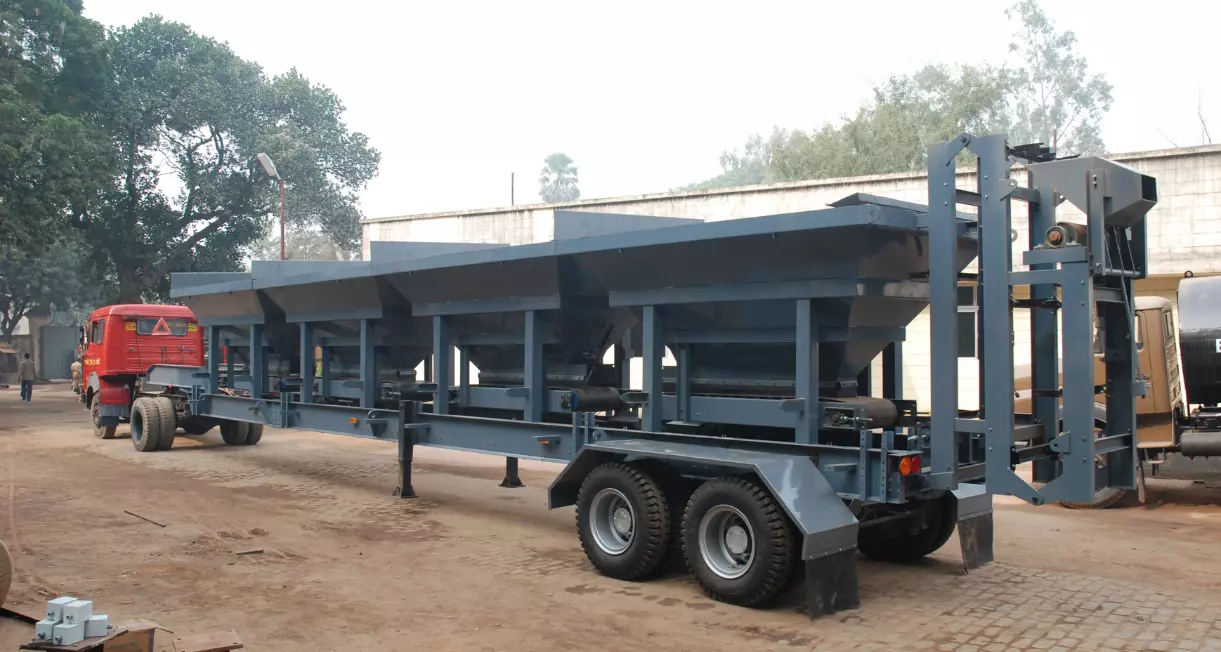

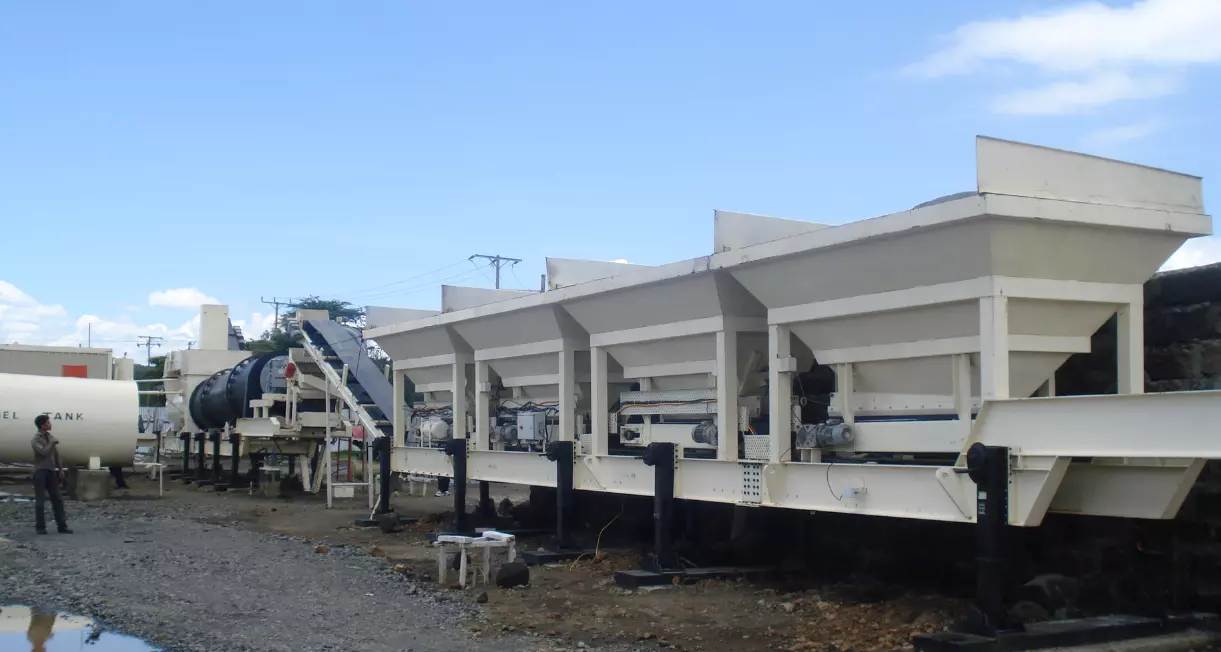

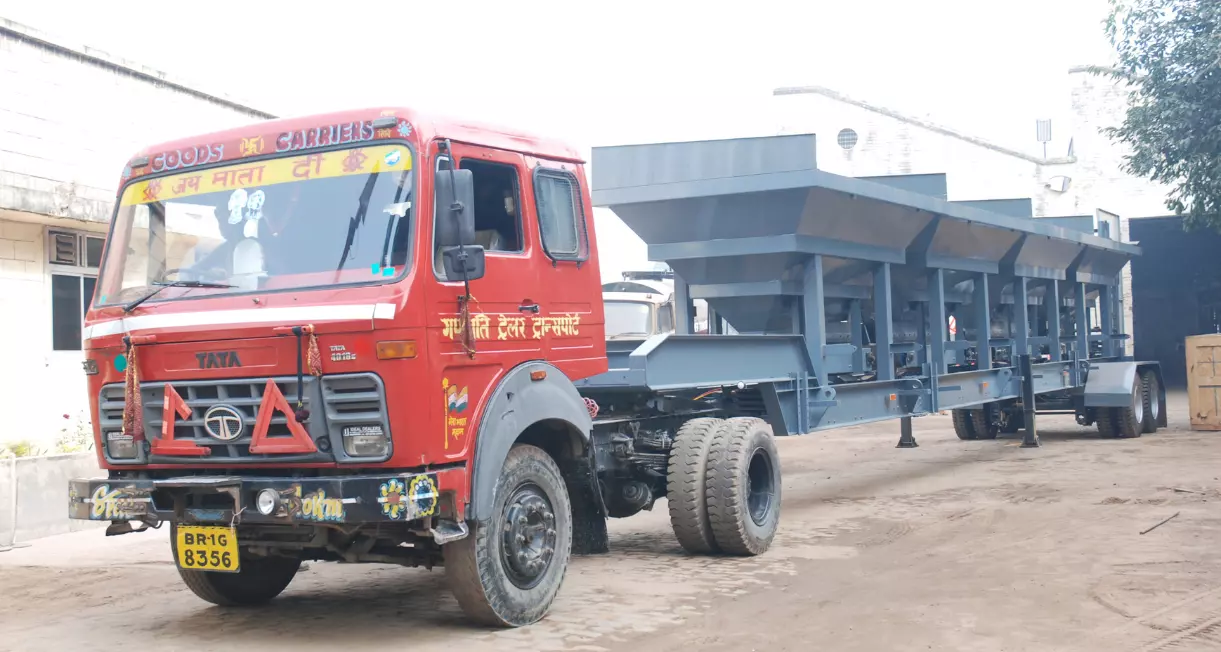

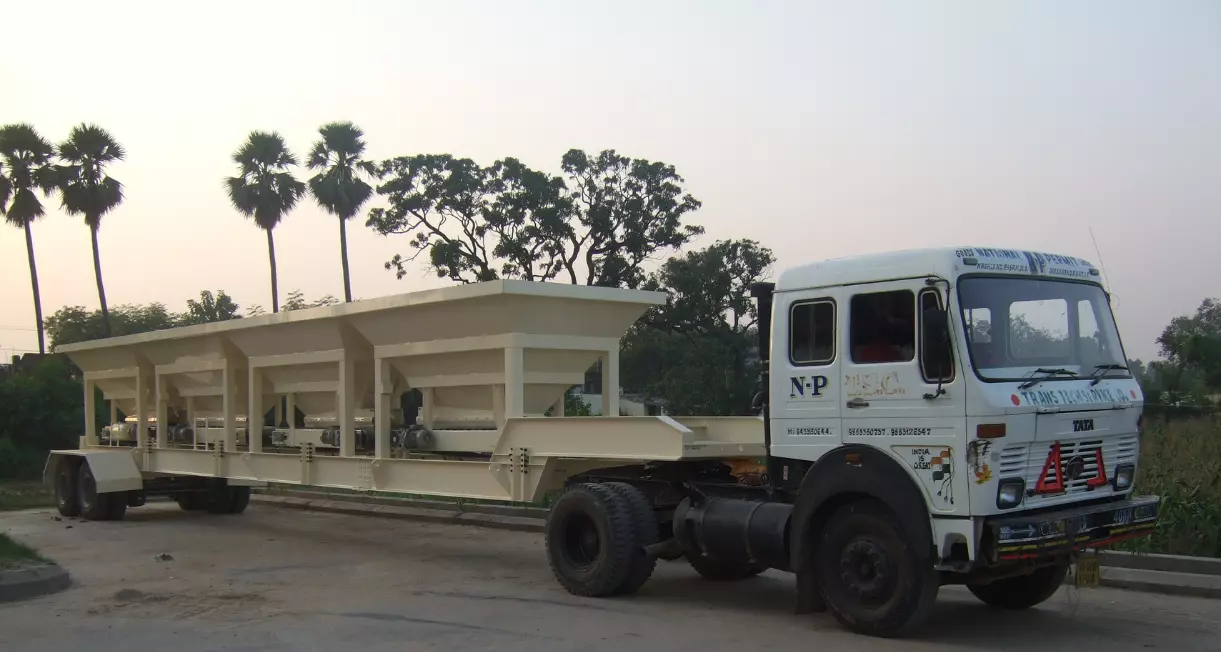

Plants are provided with 3 or 4 cold feed bins. All bins are strongly built and mounted on heavy duty beams for extra strength. Bins have self-relieving bottom opening which eliminates bridging of the feeders. Each bin is provided with variable speed inverter drives through gear motors.

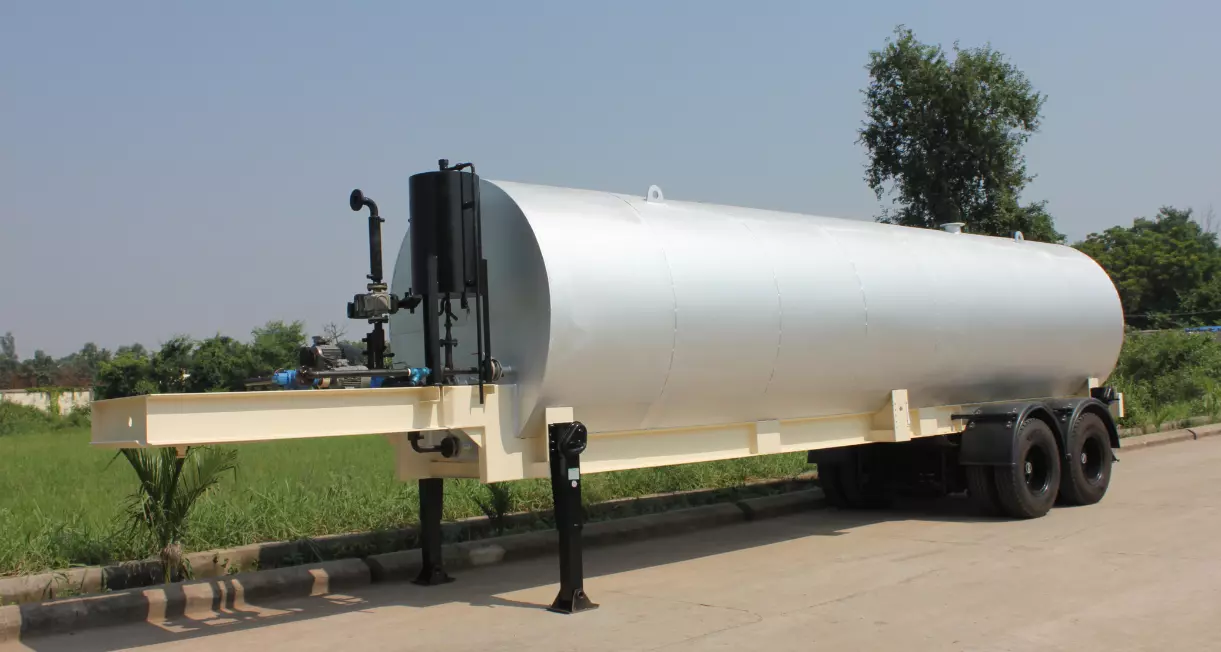

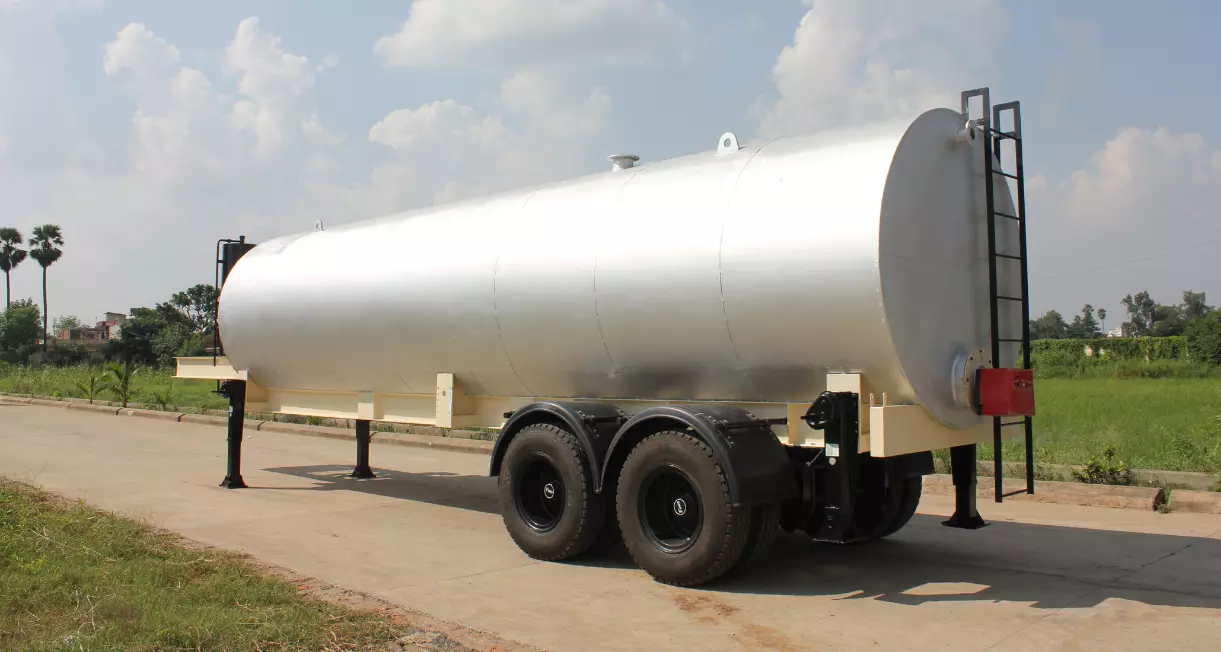

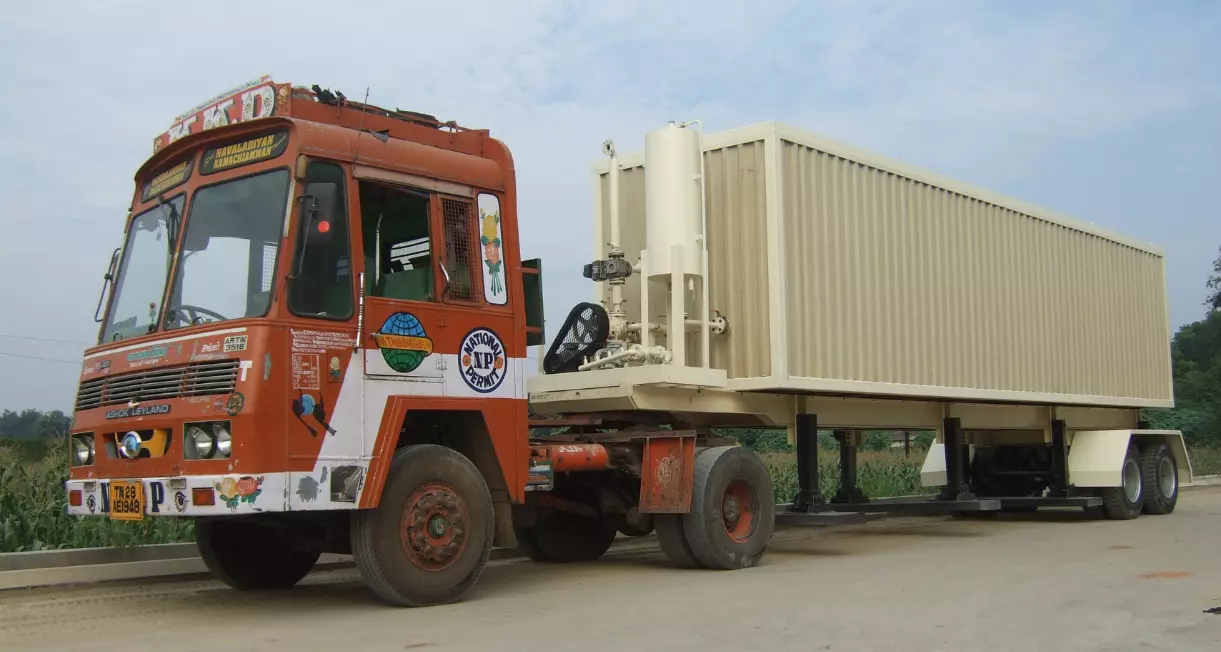

Burner heated asphalt tank is standard with our drum mixer. Tanks are built with heavily reinforced steel structures and fitted with diesel fired burner. Hot oil coils are also provided in the tank, allowing the hot oil to circulate through jacketed pipes and pump. US make Asphalt and hot oil pumps are used.
Plant is equipped with a standard wet scrubber type pollution control system. Wet scrubber system includes all duct work, automatically controlled air damper, water spray nozzles, water pump and exhaust fan.
Drum Mixer is equipped with fully automatic, diesel fired burner. Burner assembly includes control motor, oil and air piping, pilot and main flame scanners, turbo blower and fuel pump.

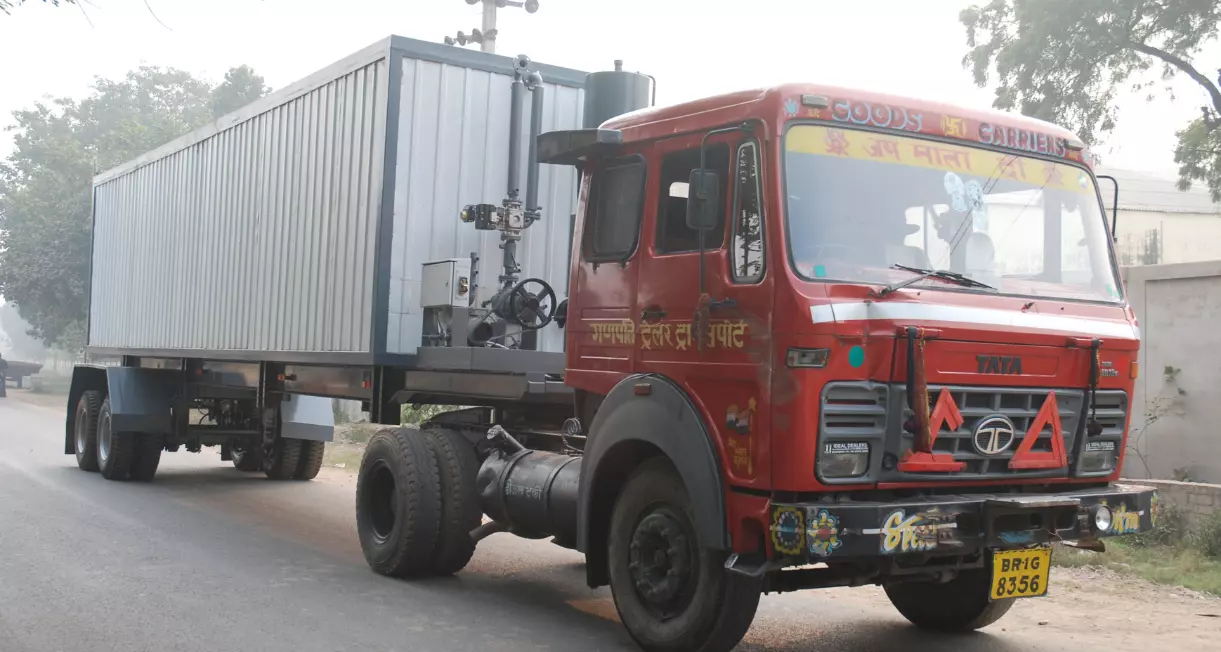

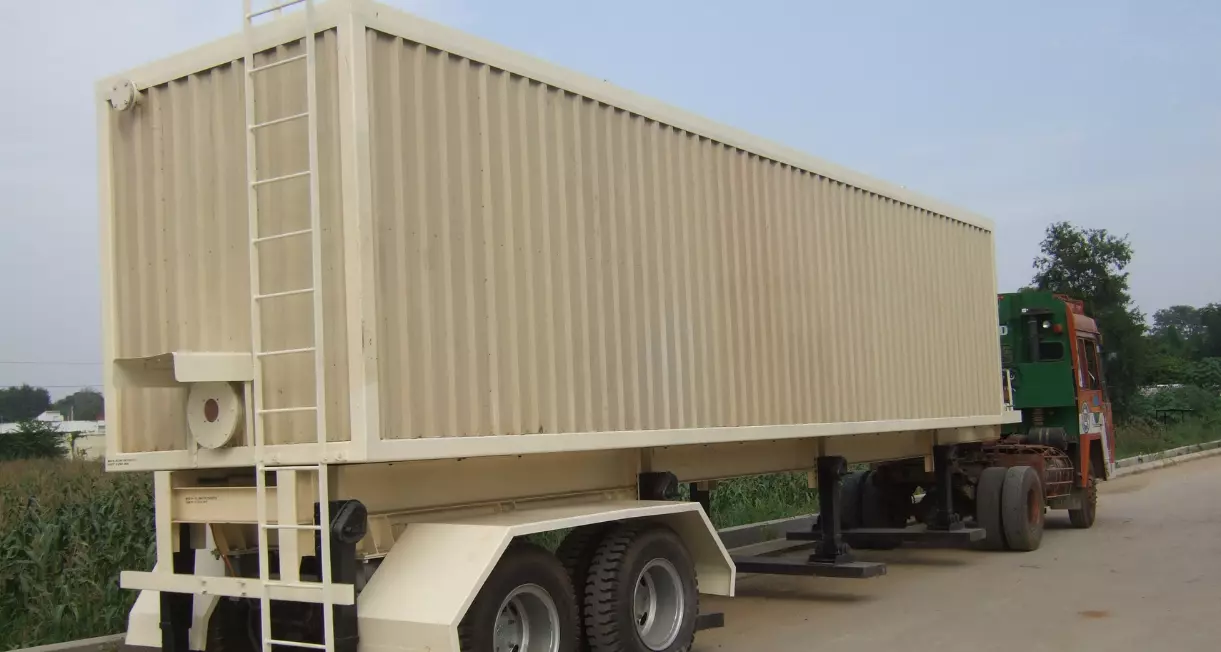

Plant controls are mounted on a centralized panel inside the control house. PC/PLC based automation system allows the operator to automatically control the asphalt blending process. Controls include burner controls, temperature controls, damper controls, emergency plant shut down controls, sequential start and stop controls. The display shows Production TPH, Aggregate TPH, Asphalt TPH & Mix Temperature. Computer controlled automation system is fully backed with a semi-automatic control system. Daily production datas can be printed out for records.

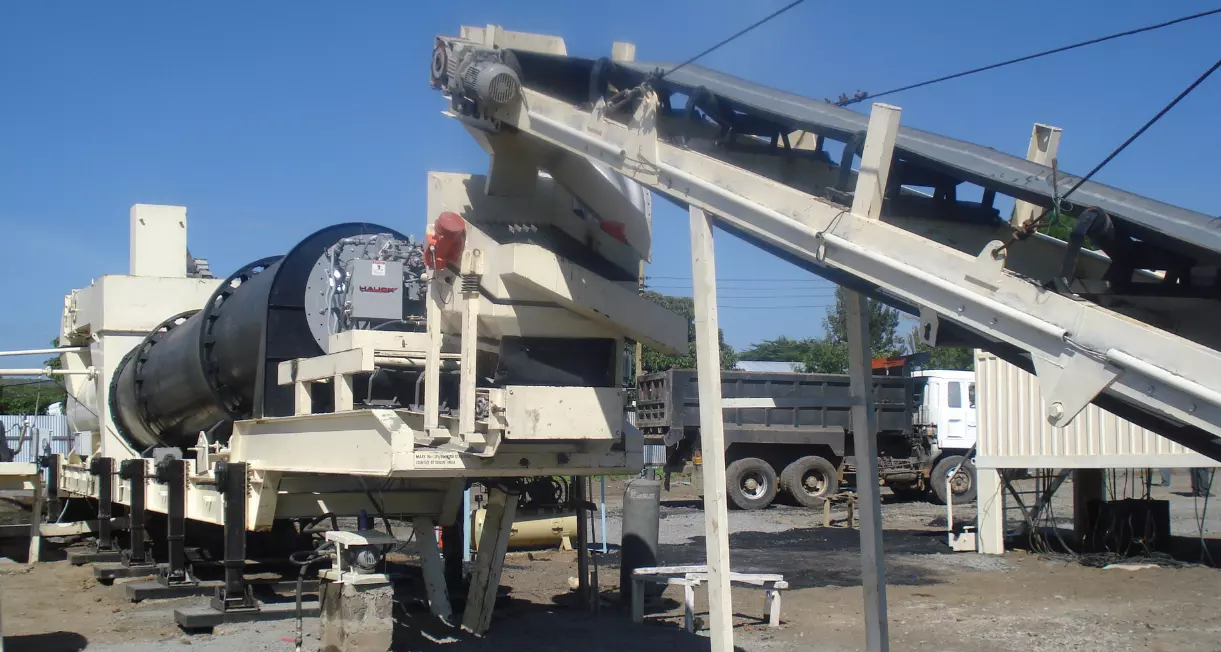

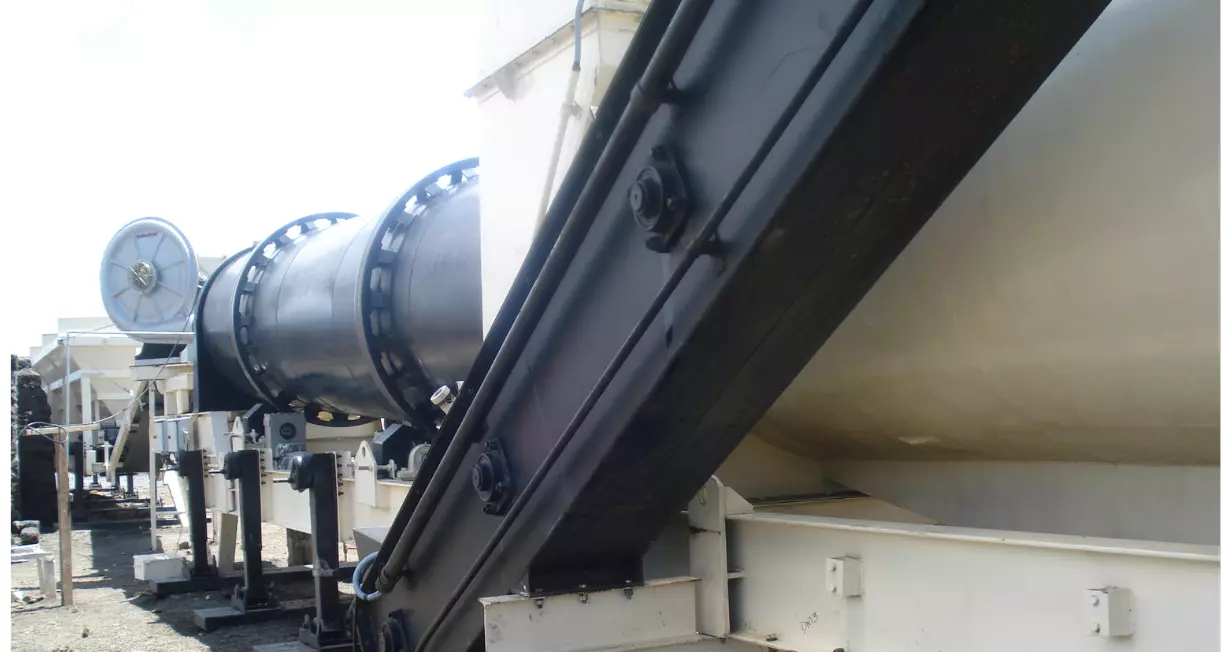

Plant is equipped with a drag output conveyor. Drag conveyor is built with heavy steel sections, bottom and sides are provided with abrasion resistant wear liners. US make high quality drag chain is supplied, fitted with heat treated sprockets, gear box and motor.
One Tank of 5000 / 10000 Ltrs. capacity is provided with each plant.
