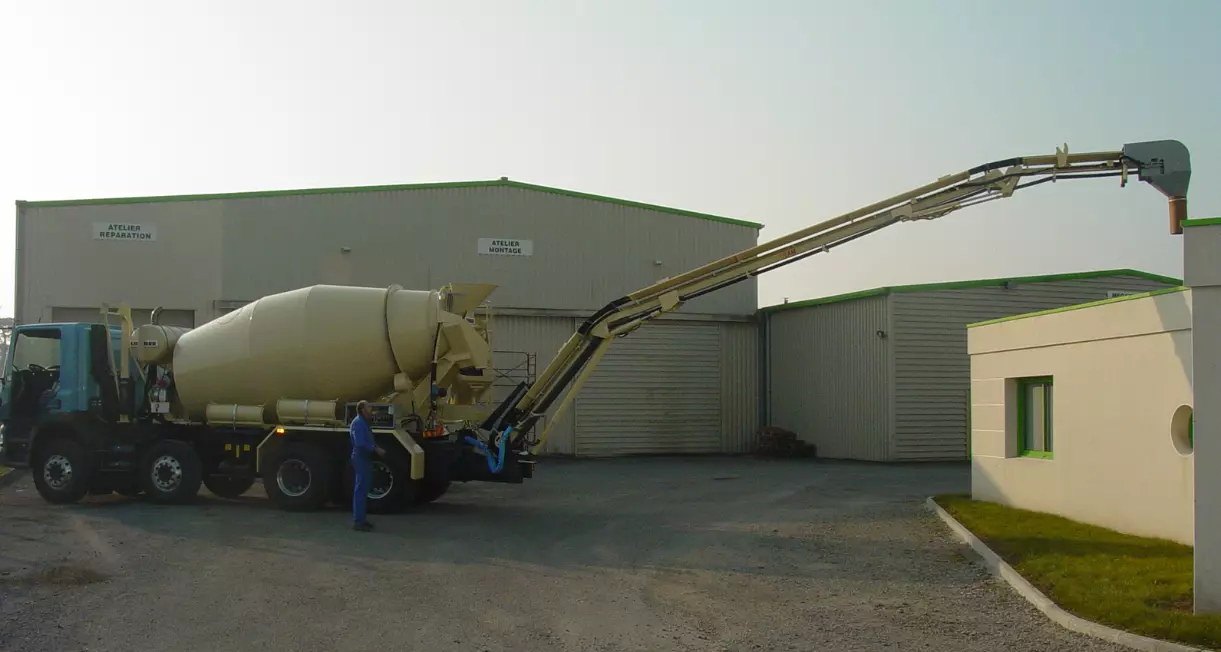

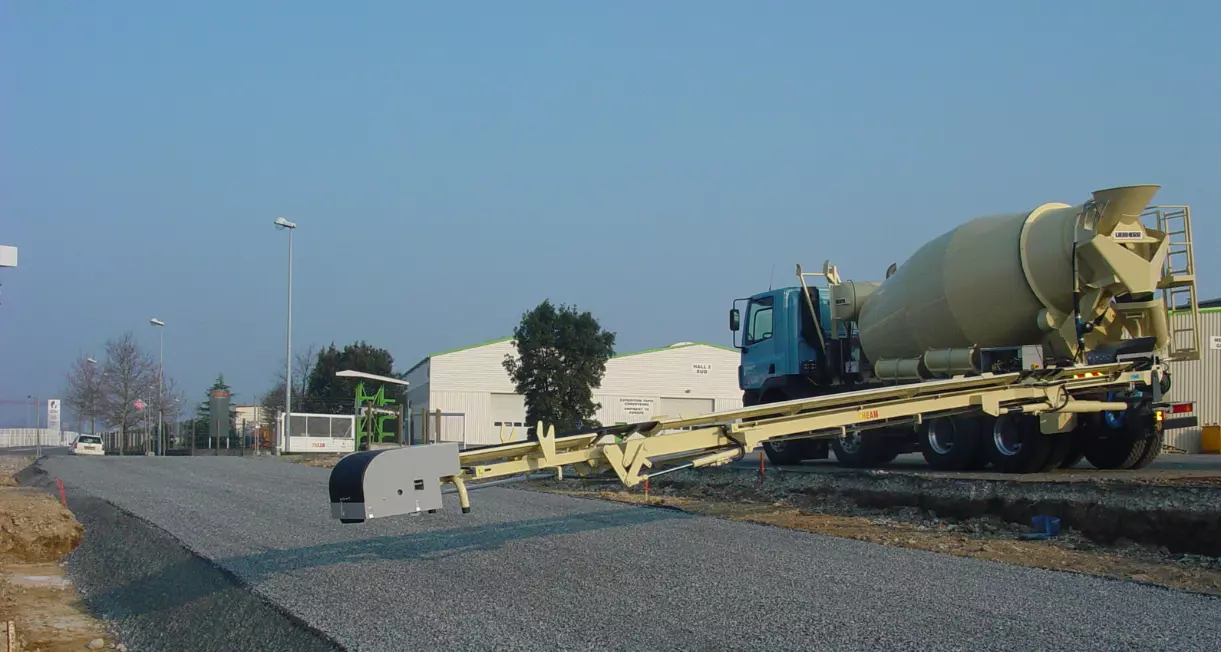

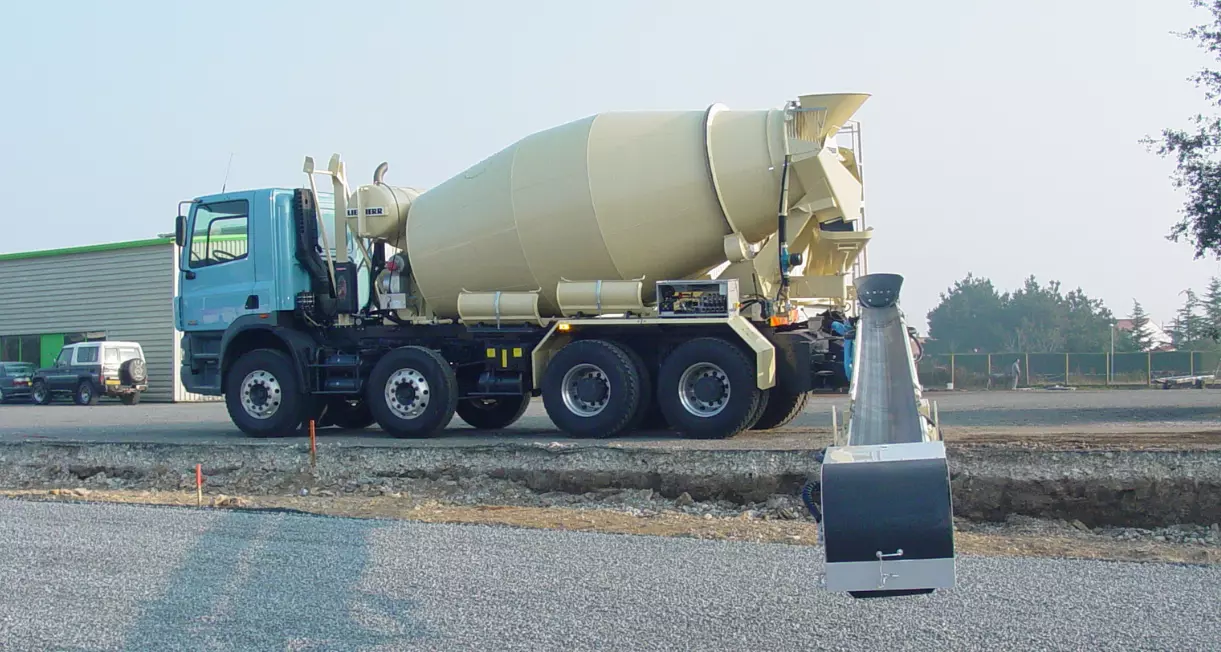

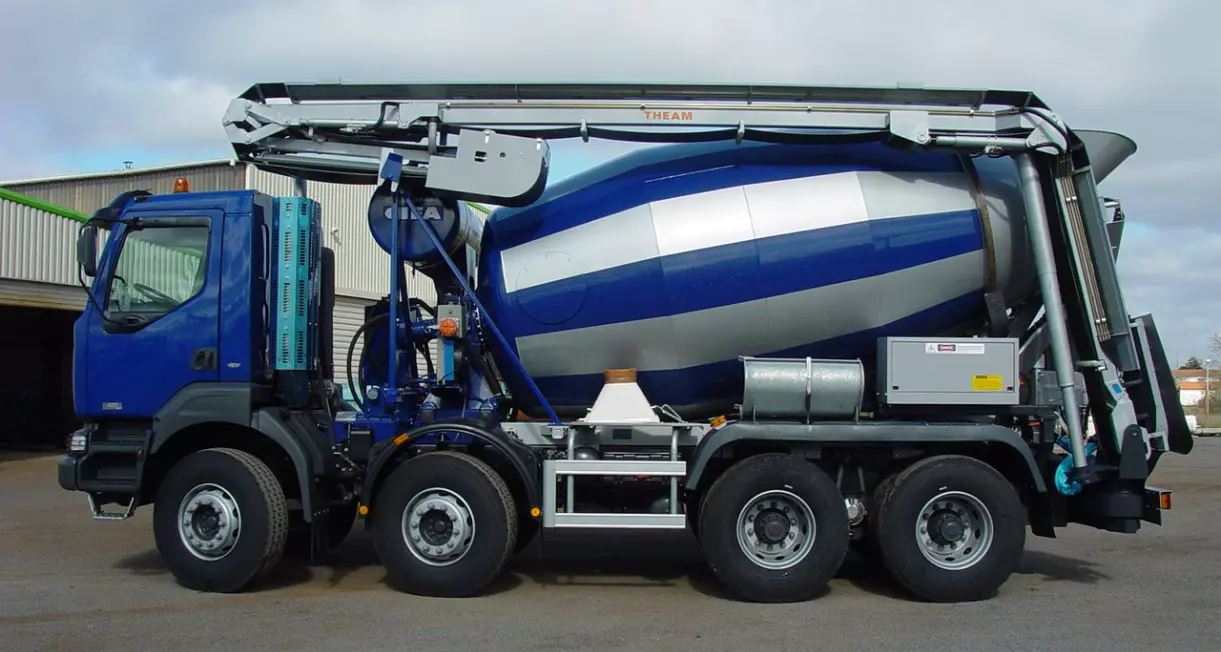

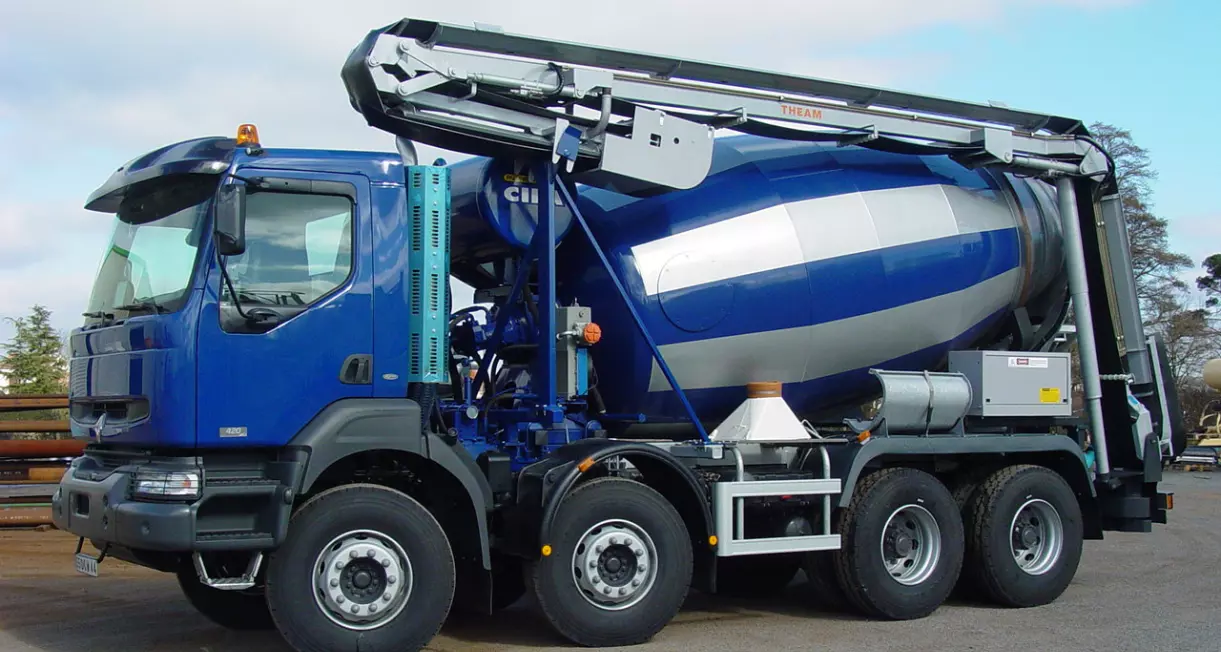

The Concrete Conveyor is ideal for operators who require to supply ready mix concrete mixture in 300 degree arc. The conveyor is based on swinging principle and allows pouring of mixture in different directions as per requirement to fill the extended form-works and footings despite of truck being stationery. The conveyor is easy in maintenance and functions with total reliability.
The equipment is manufactured in collaboration with French technology and are ideal for sites from short to medium distance. These machines are appreciated for easy usage and less maintenance requirement.
| TECHNICAL SPECIFICATION | |
| Model | PR 12 |
| Conveyor Length | 12.2 mtr |
| Approximate Weight | 1.6 Tonnes |
| Belt Width | 360 mm |
| Discharge Rate | 70 cbm/hr |
| Discharge Height | 7.5 mtr |
| Motor | 160 cc |
| Controls | Hydraulic |
| Water Pump | 01 no. |
| Additive Tank | In built |
| Additive Pump | 01 no. |
| Controls | Fully Automatic |
| Power Requirement | 70 HP |
| Weight (Approx) | 11 Tons |
Advantages:
