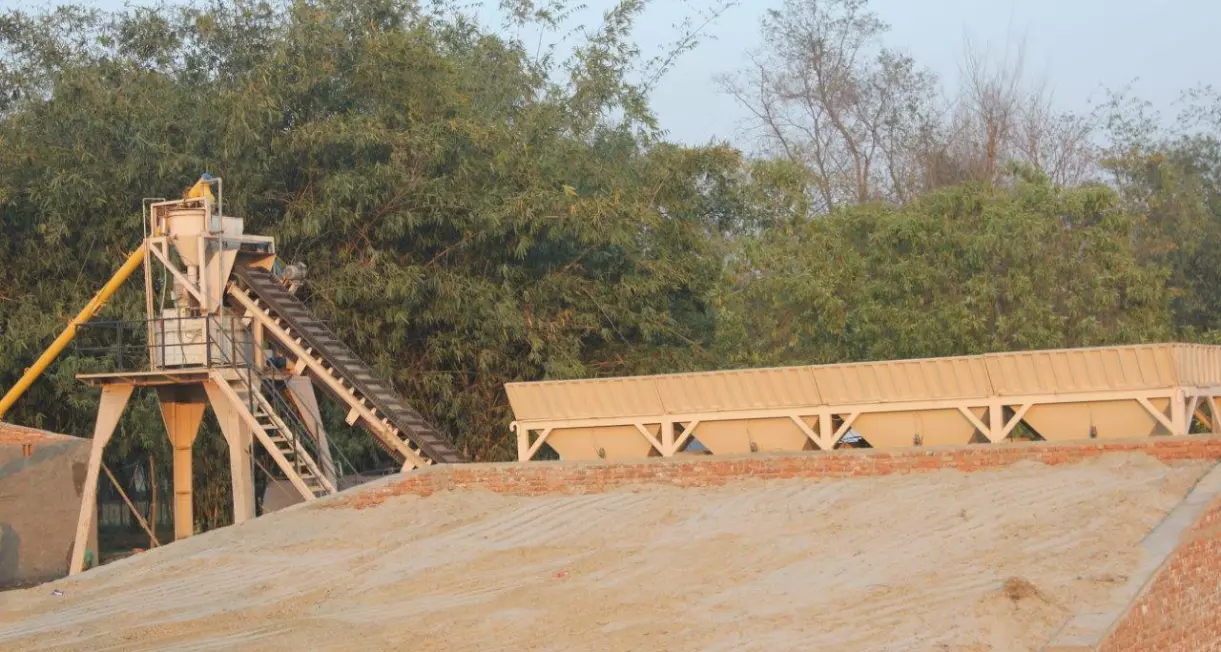

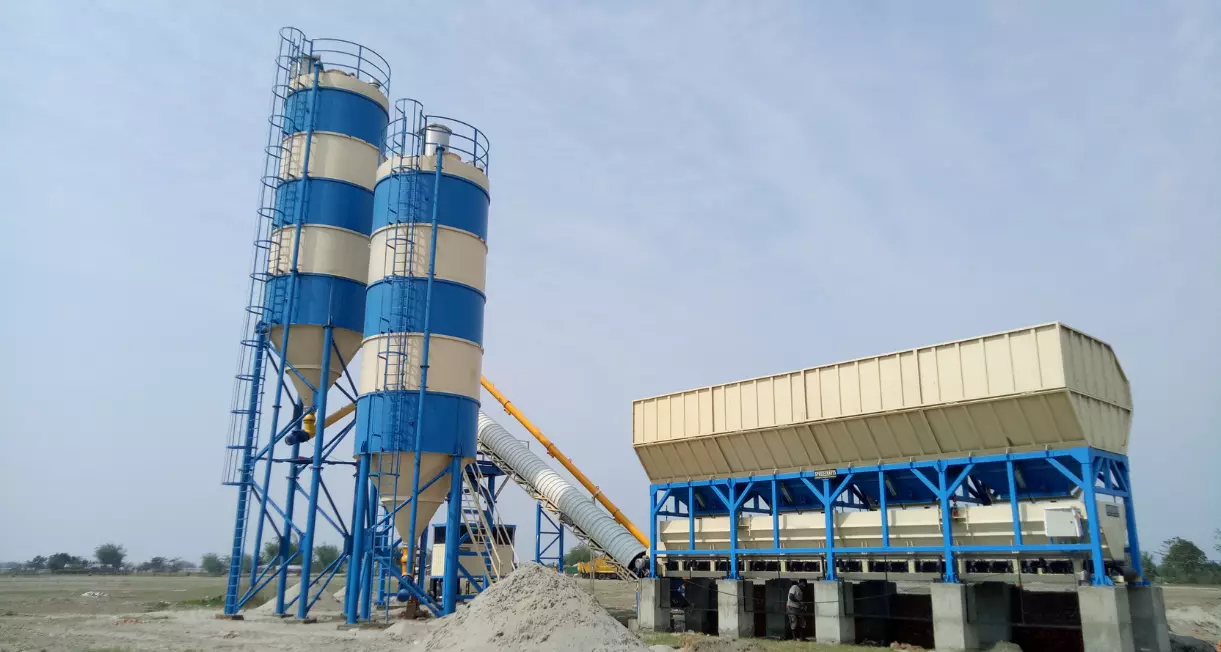

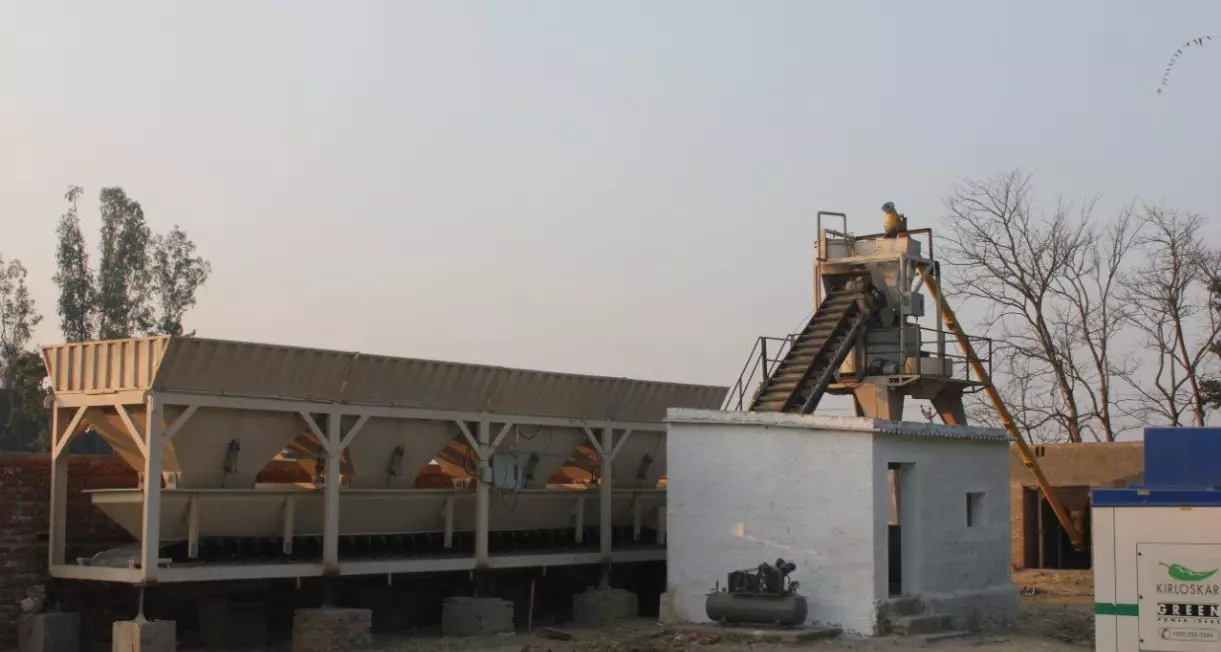

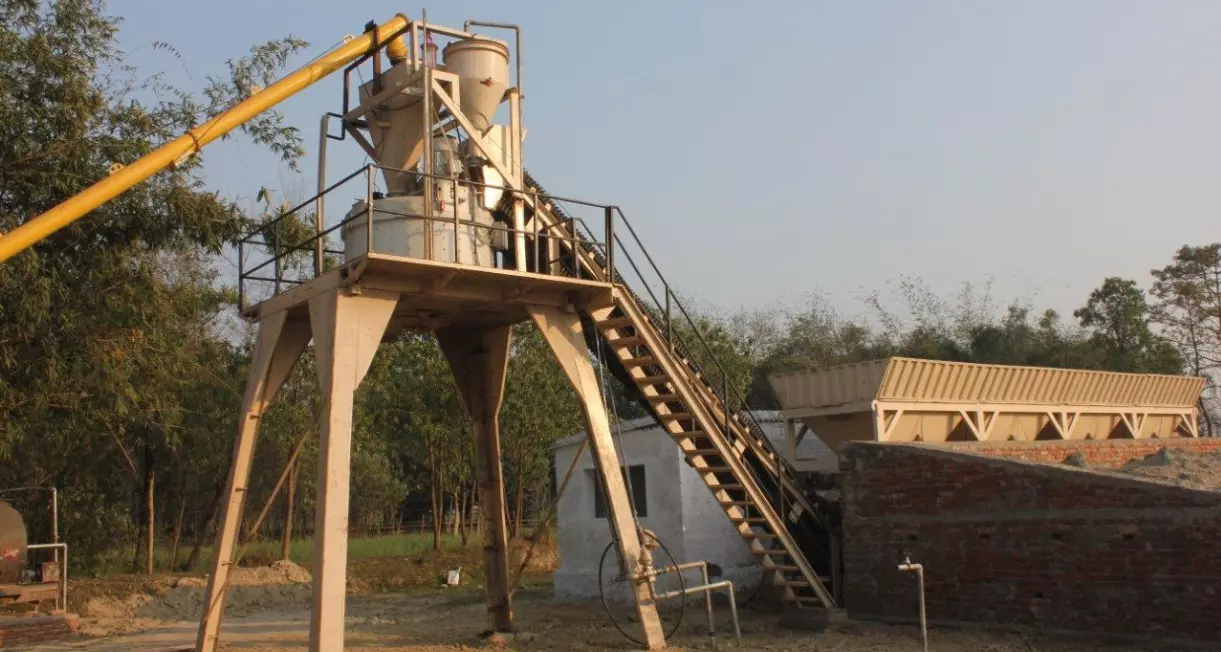

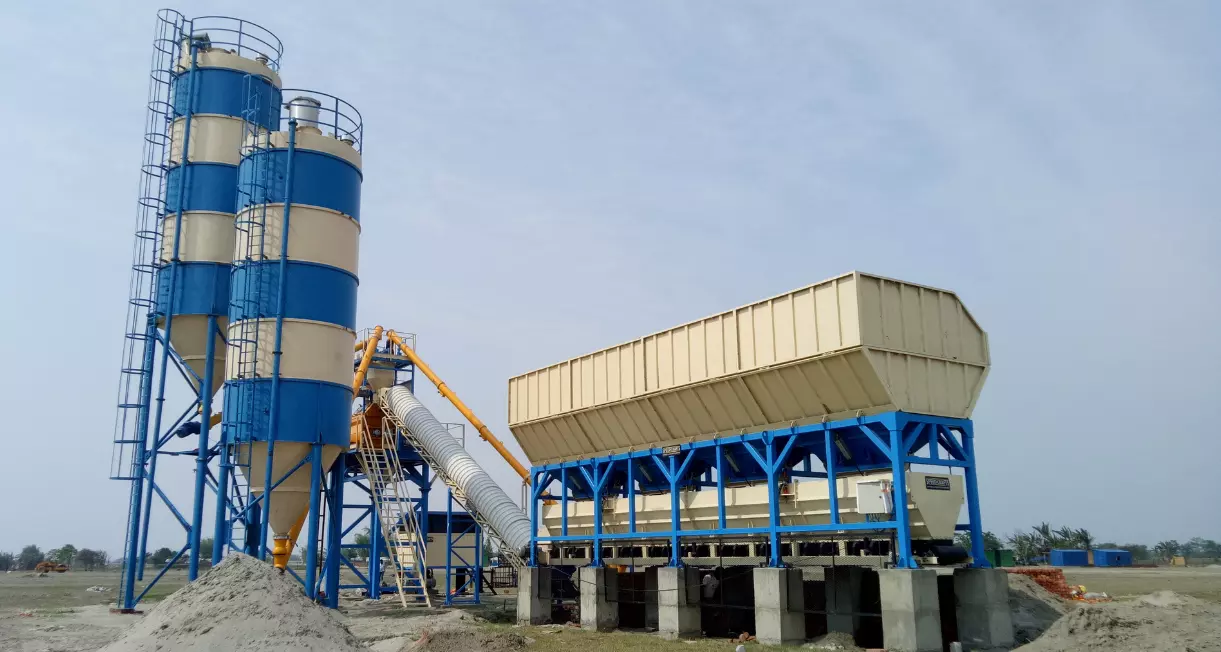

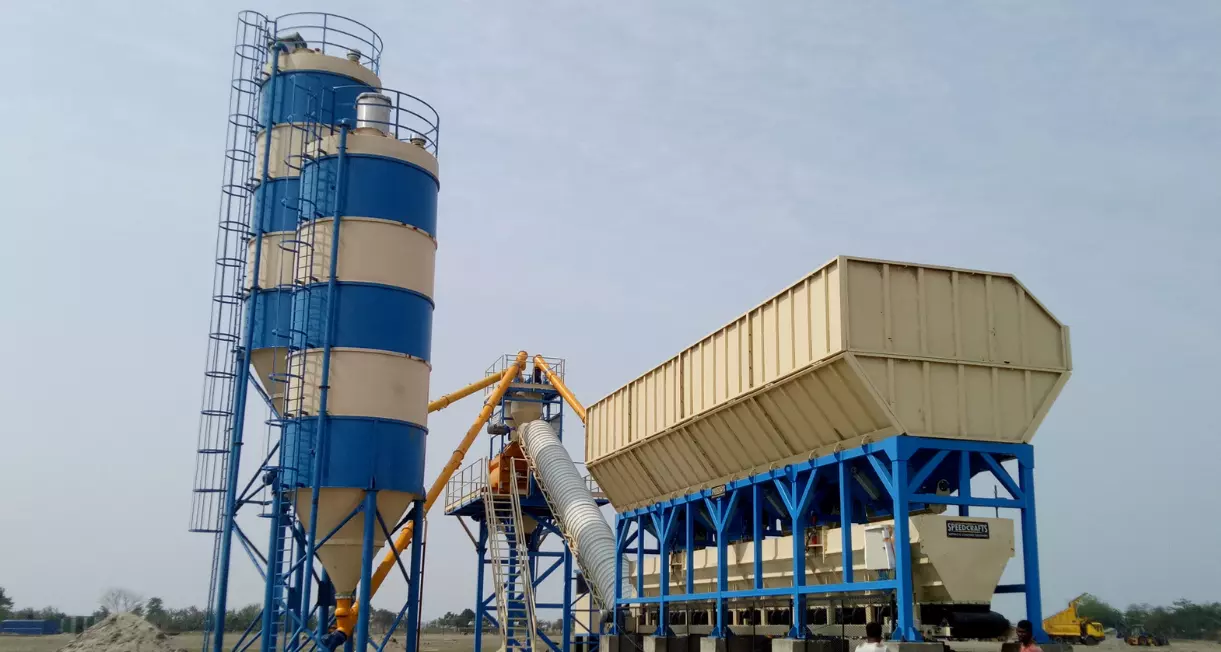

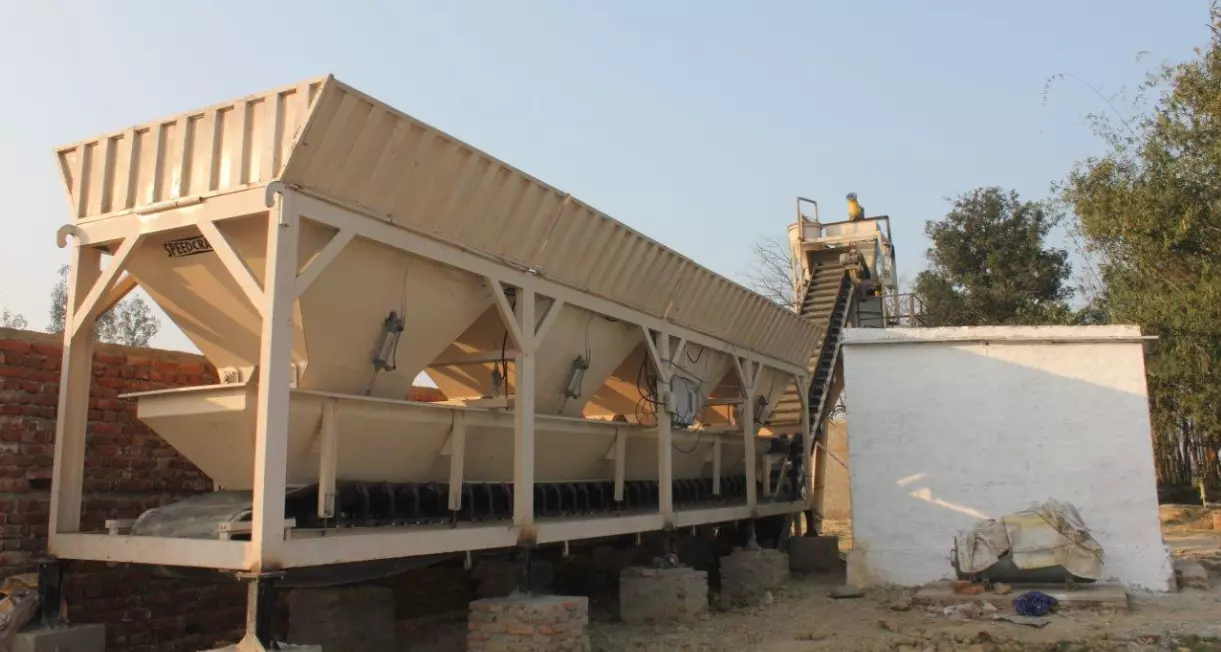

Inline Concrete Batching Plant

Fully automatic Stationary Concrete Plants are available upto 120 m³/hr capacity. These plants are highly advanced and durable.

MODEL	SCP-30	SCP-45	SCP-60
Output (cbm/hr)	30	45	60
Type of Sand / Aggregate Bin	In Line	In Line	In Line
No. of Bins	4	4	4
Bin Capacity (Each)	8 cbm	10 cbm	15 cbm
Transfer Belt Width	500 mm	550 mm	650 mm
Type of Mixer	Pan	Twin Shaft	Twin Shaft
Cement / Filler Weighing System	Included	Included	Included
Water Weighing System	Included	Included	Included
Admixture Weighing System	Included	Included	Included
Air Compressor	Included	Included	Included
Controls	SCADA Enabled	SCADA Enabled	SCADA Enabled
Auto + Manual Mode	Included	Included	Included
Inventory Management	Included	Included	Included
Discharge Height	4.1 mtr.	4.1 mtr.	4.1 mtr.

Features:

Plants available in 30 / 45 / 60 / 75 / 90 / 120 cbm/hr capacity.
Equipped with Pan / Twin Shaft / Planetary Mixer.
Inline storage of Aggregates & Sand.
Aggregate & Sand weighing conveyor suspended on load cells.
Inclined conveyor for feeding of Aggregate & Sand into mixer.
Independent weighing system for Cement, Water & Additive.
Operation through Fully Automatic Electronic Control Panel.
Manufacturing is done with advanced, internationally recognized techniques at our State of the art facilities.
Global presence with prompt after sales support.
Dedicated R & D Department.

Mixer Features

Controls

Optional
