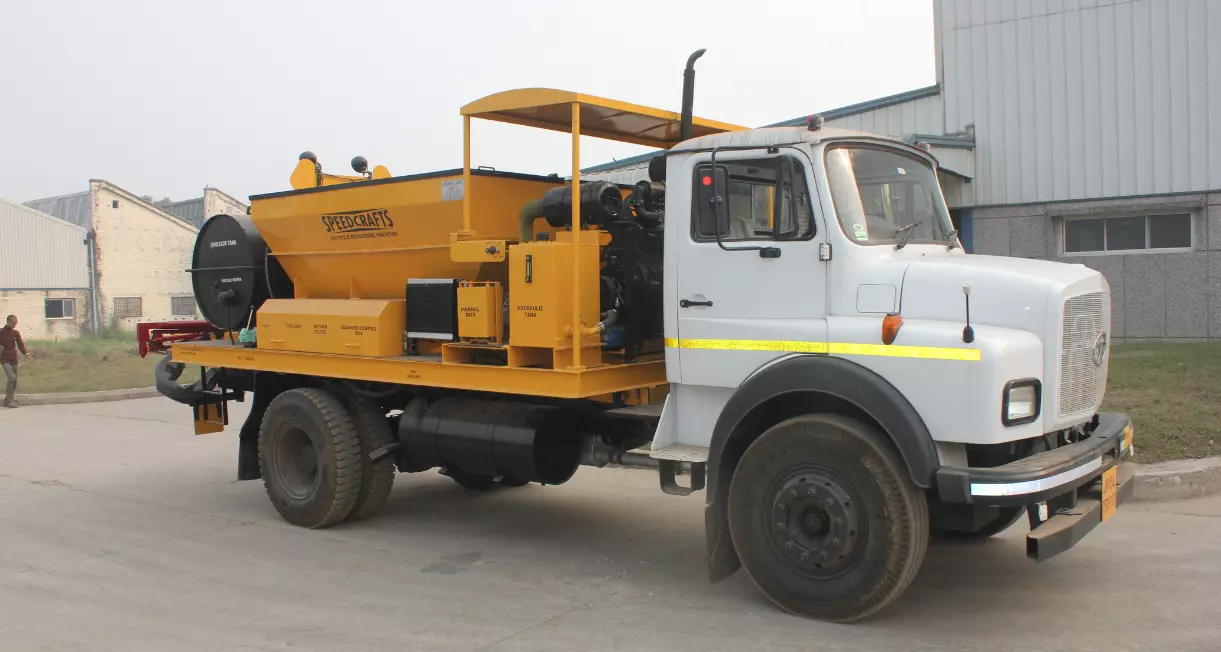

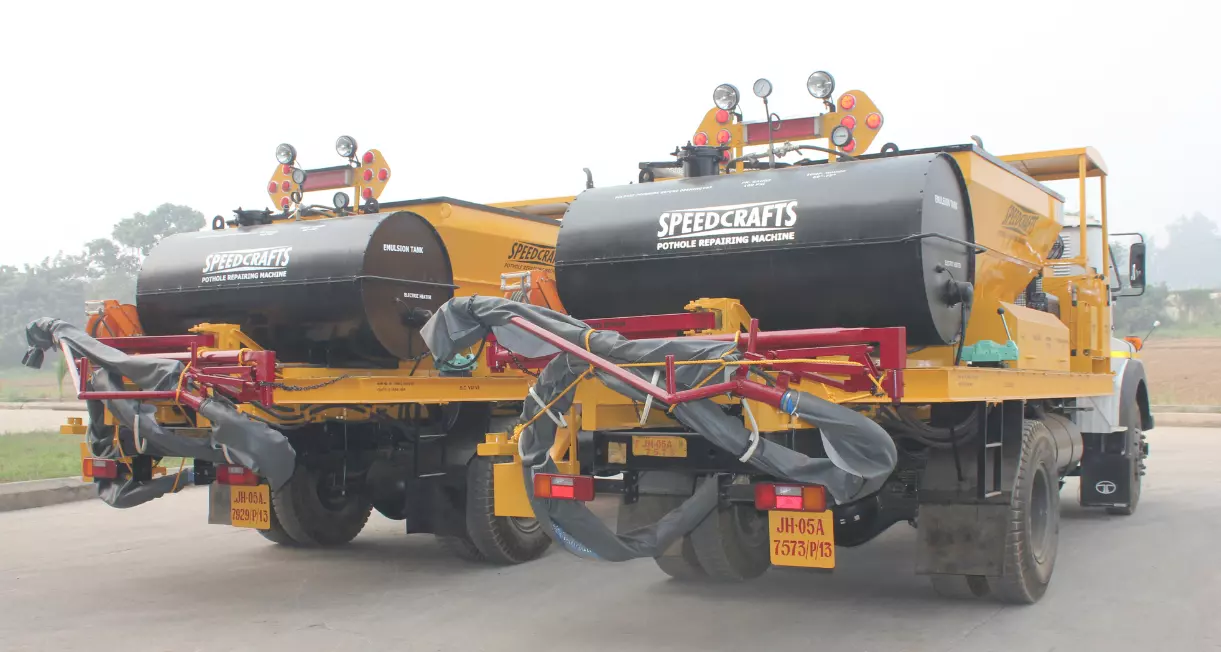

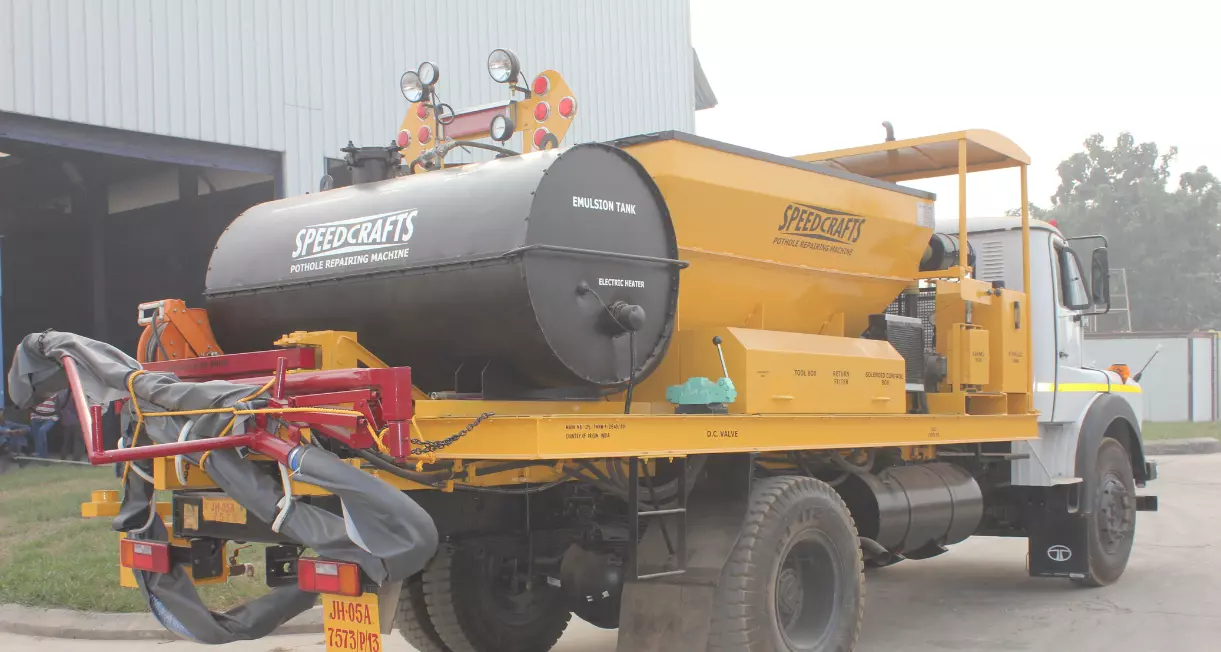

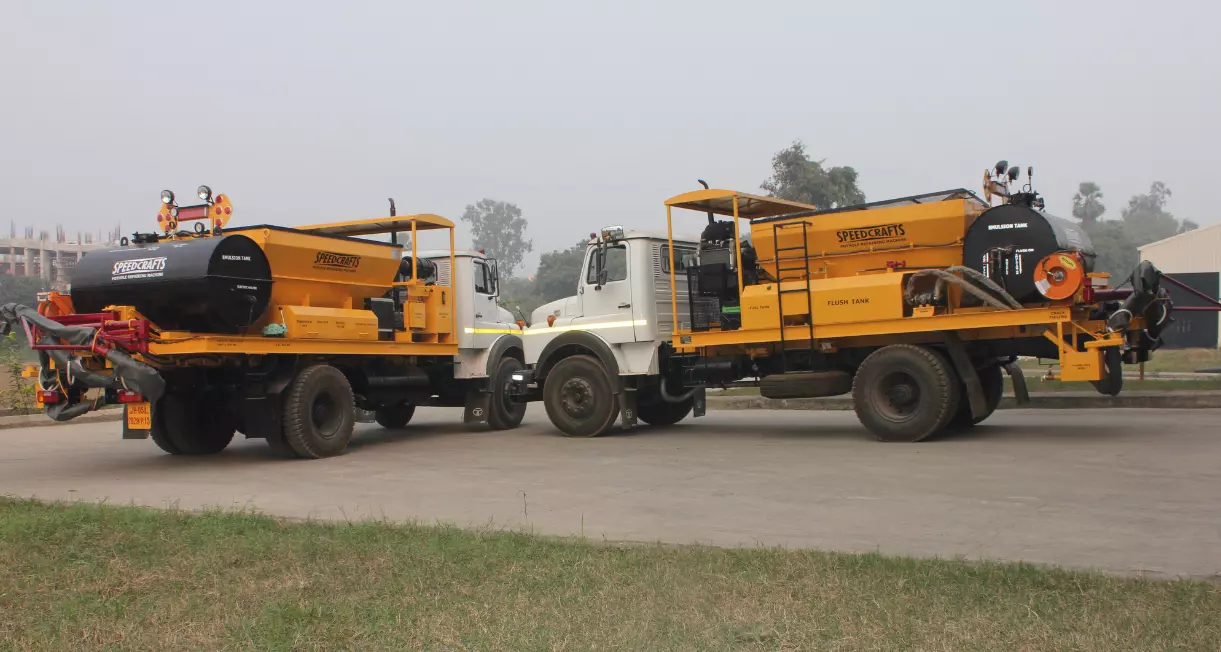

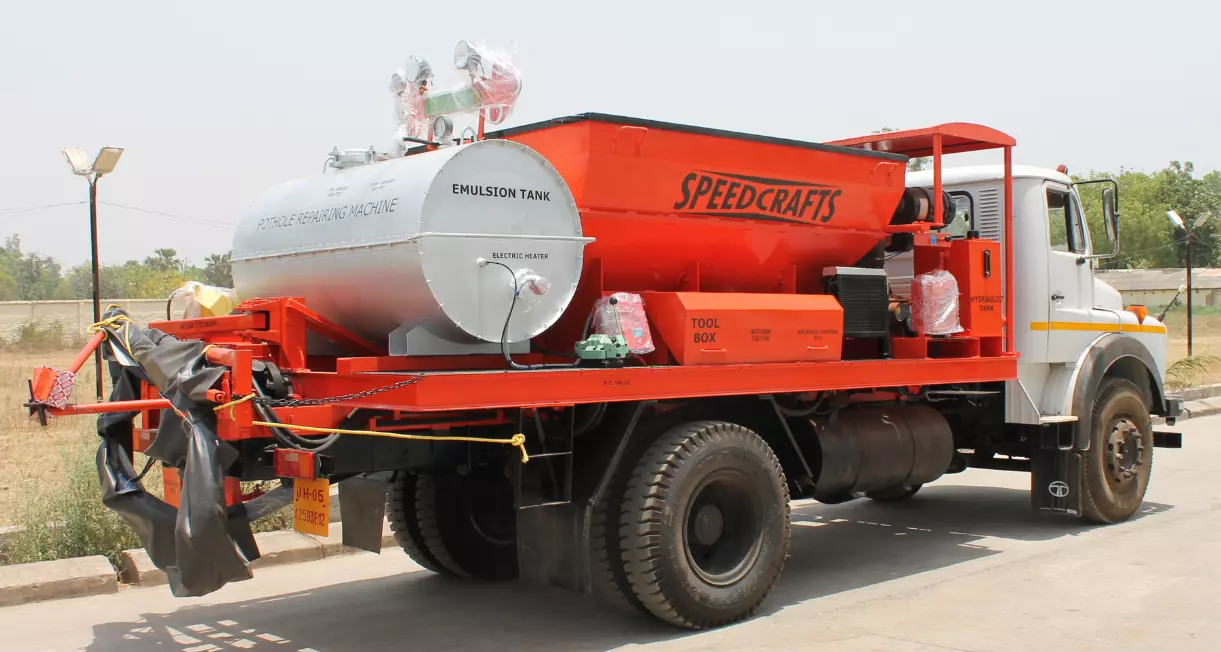

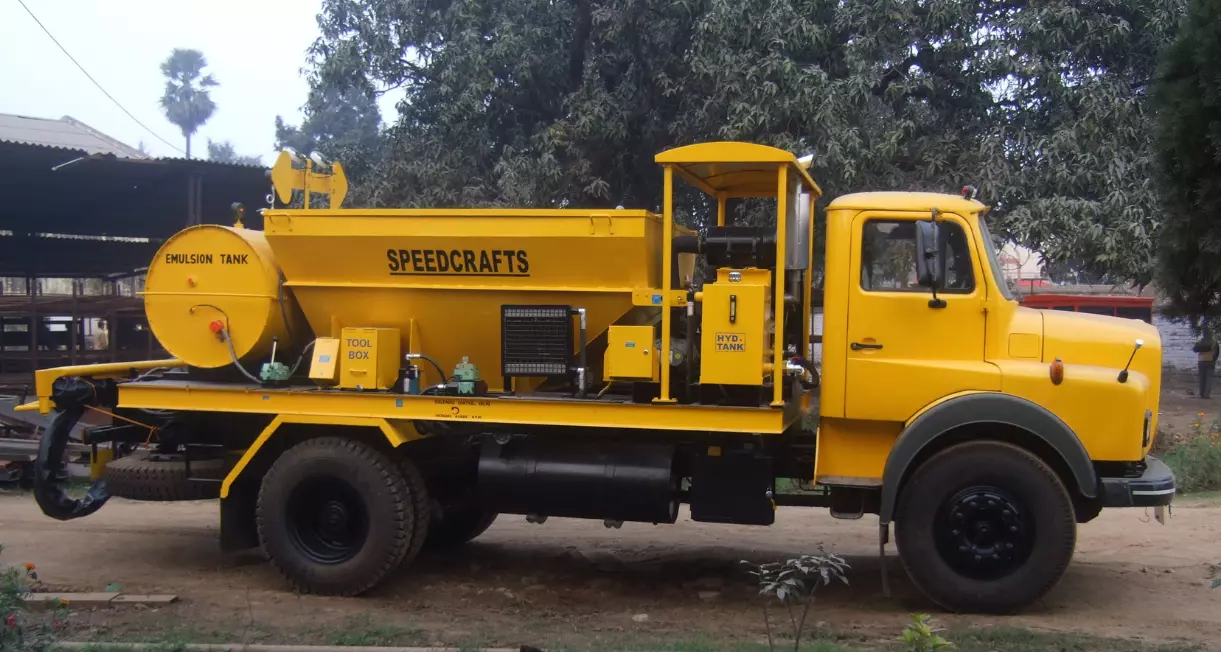

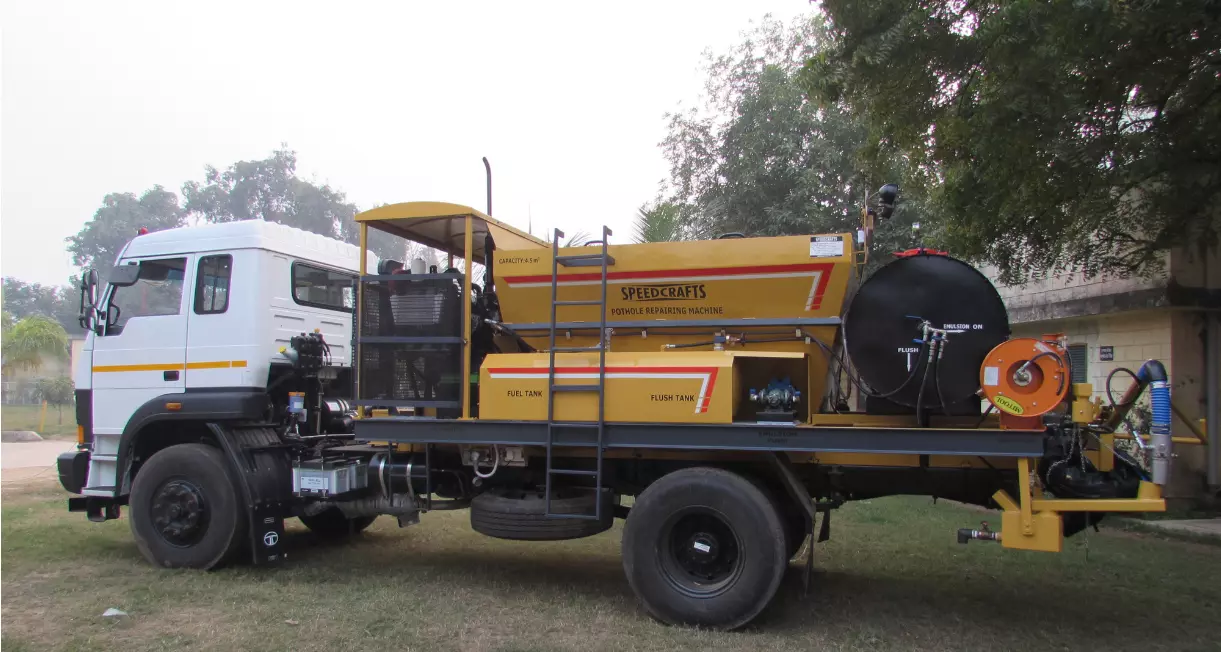

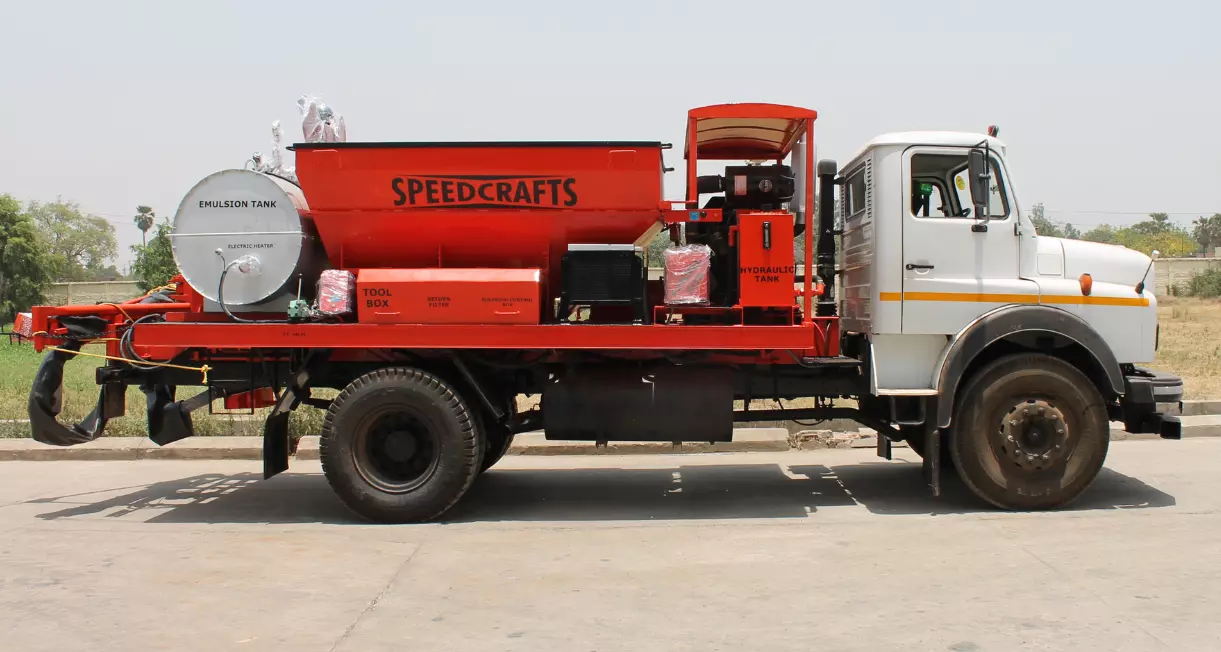

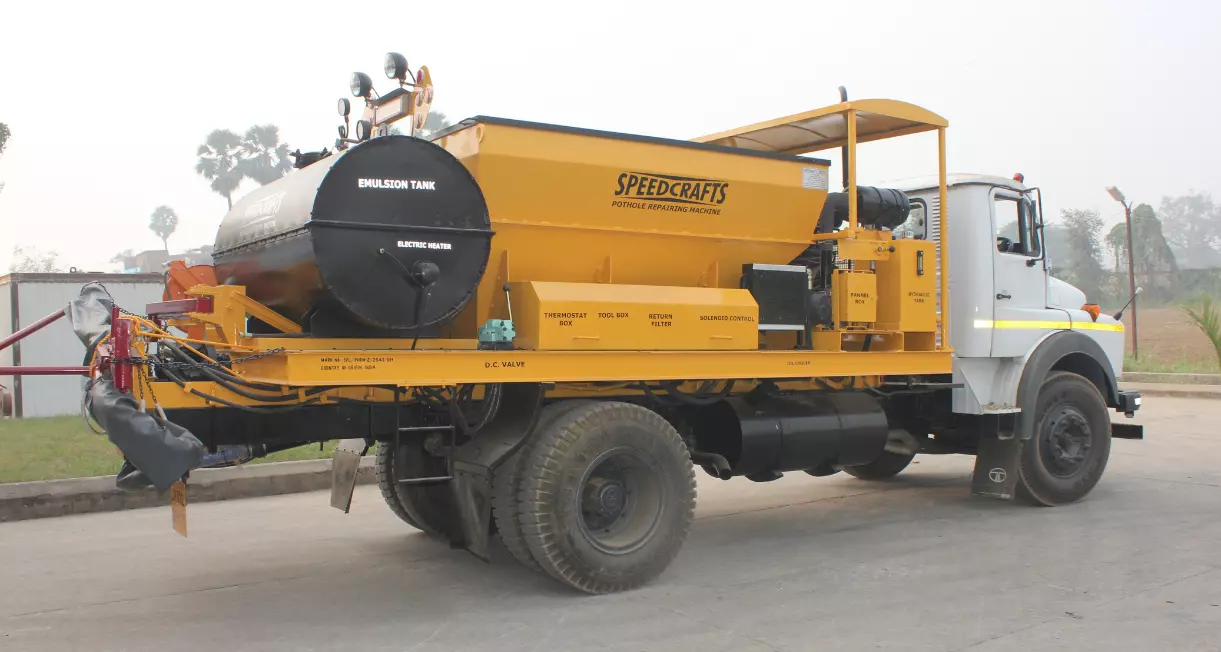

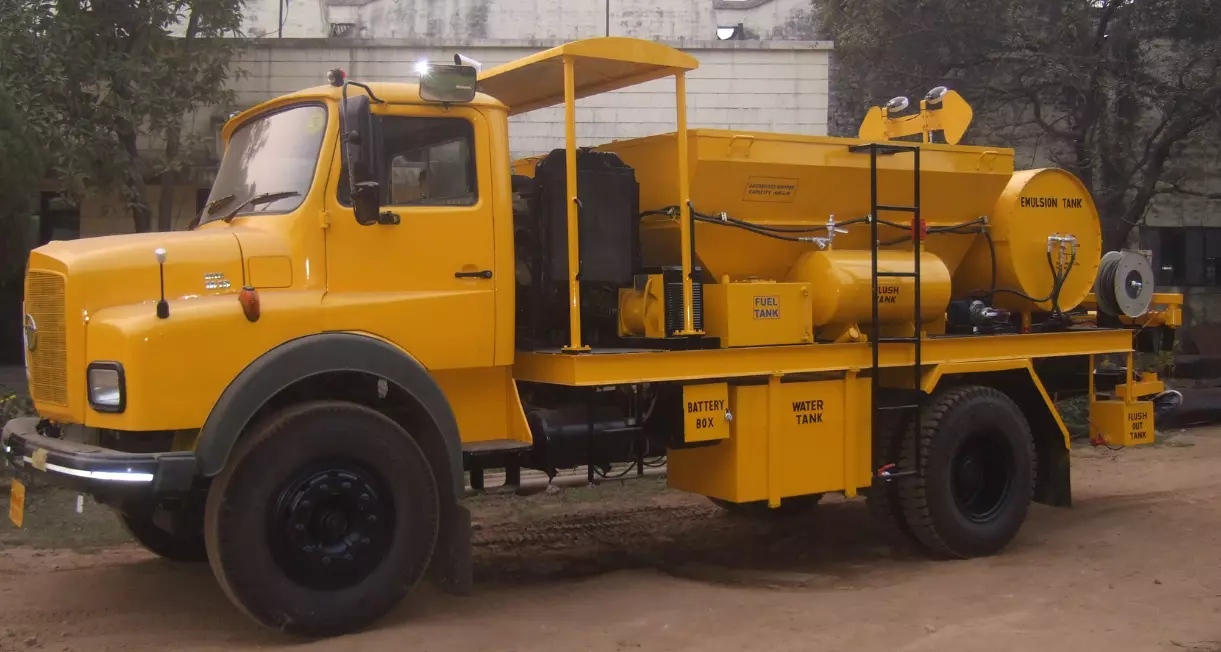

The Pothole Repairing Machine is specially used for swift repairing of cracks, potholes, shoulders, fissures, alligator areas and utility cuts. A smaller amount of not more than 1 kg of pressure locates the boom anywhere within a 100 sq. mtr. working area with a vertical assortment of 1525 mm above to 610 mm below concrete level.
The truck mounted road maintenance machine sprays hot asphalt emulsion over area atomized with the support of an internal spray ring to create a thin tack coat & abundant coated asphaltic material with dense coating for bringing the repaired surface up to required level.
| Chassis | |
| TATA Model 1613/42 or equivalent |
| Dimensions | |
| Length | 8650 mm. |
| Width | 2400 mm. |
| Height | 2900 mm. |
| Discharge Nozzle And Coating System | |
| General | Capable of 100% coating prior to discharge |
| Nozzle | Machined aluminum with internal spray ring tapered to accelerate material |
| Coating System | Spray bath at nozzle internal spray ring |
| Tank | |
| Asphalt tank | 950 ltrs. |
| Insulation | Tightly covered fully insulated tank |
| Openings | Rapid opening of 200m |
| Heating | 6000 watt – 110V/220V. |
| Fuel tank | 75 ltrs. |
| Flush tank | 150 ltrs. |
| Engine | |
| Horsepower | Least 63 HP. |
| Filter | Oil bath. |
| Battery | 12 V/19 Plates. |
| Working Area | |
| Total | 100 Square metre. |

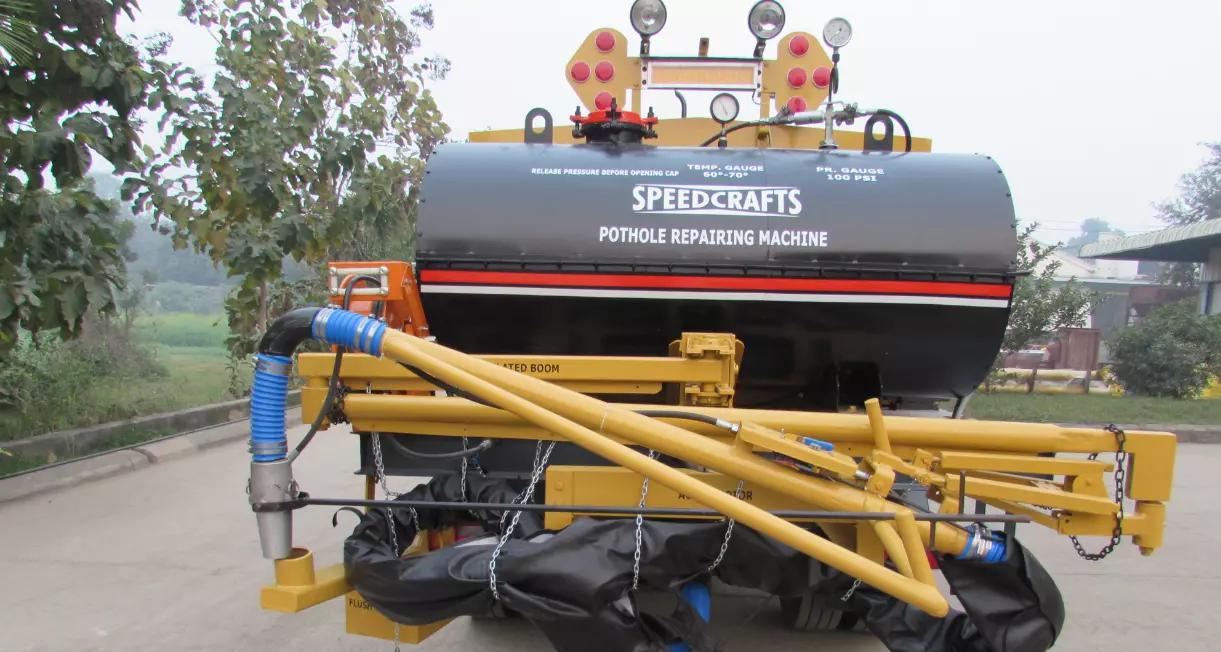

| Tri-Fold Articulated Boom With Counter-Weighted Arm | |
| Radius | Completely coherent 6360mm |
| Vertical stroke | 1525mm above to 610mm below pavement-self supporting feature |
| Controls | Operating location 1830mm from material spray minimum |
| Air | High Degree lobe blower |
| Aggregate Delivery System | |
| Type | Screw supplied to rear mounted power flow positive displacement air lock |
| Air lock | Rear mounted. |
| Hopper capacity | 4.5cu.m with optional 6cu.m |
| Hydraulic System | |
| Pump | Negligible noise vane |
| Flow controls | Pressure compensating |
| Hydraulic tank | 85ltrs with sight measurement |
| Filters | Dual section & return filter |
Note : The capacity might change according to operating conditions, bitumen viscosity, ambient temperature, drum loading capacity of staff and related machinery.
