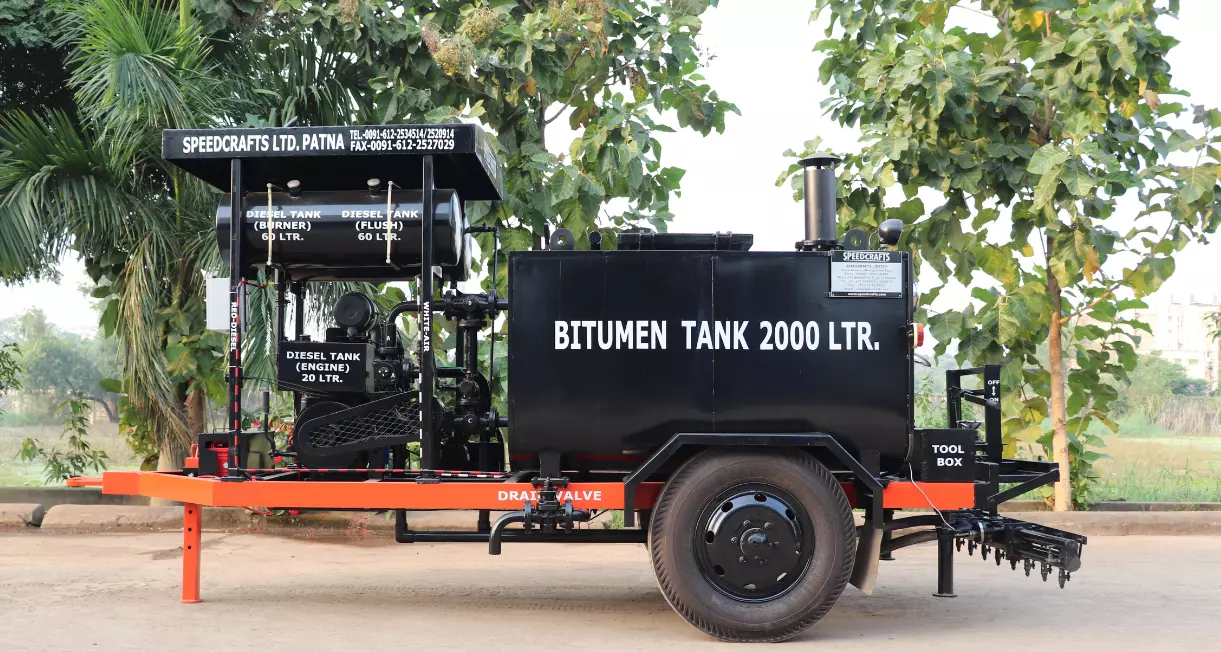

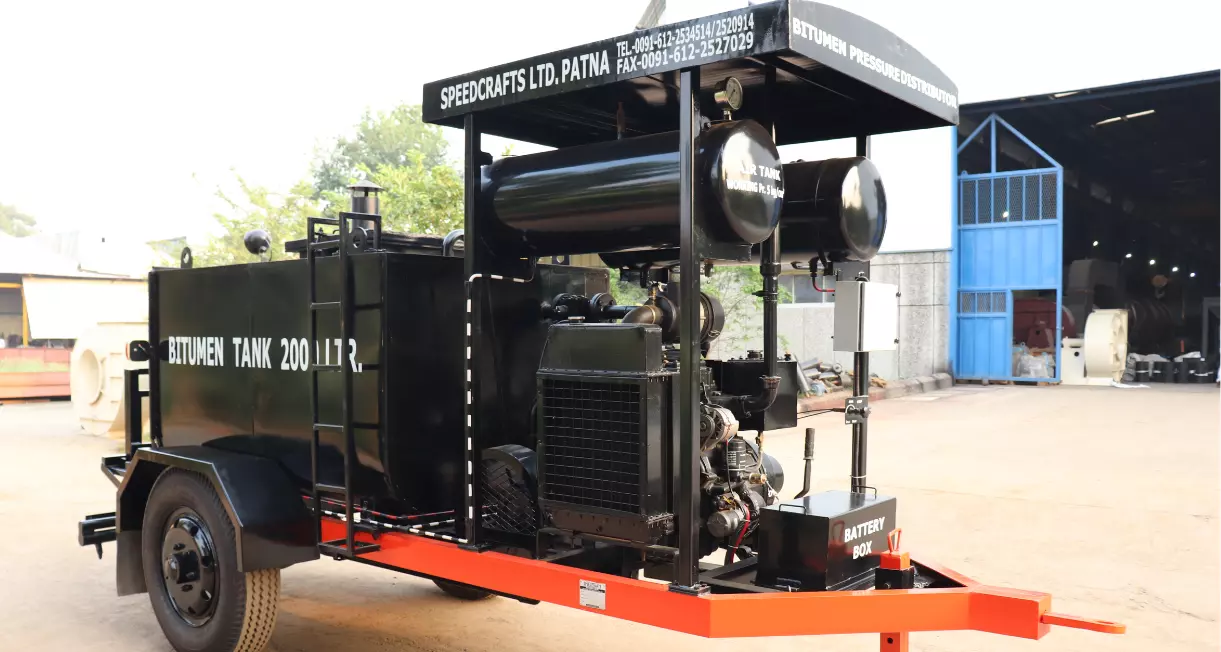

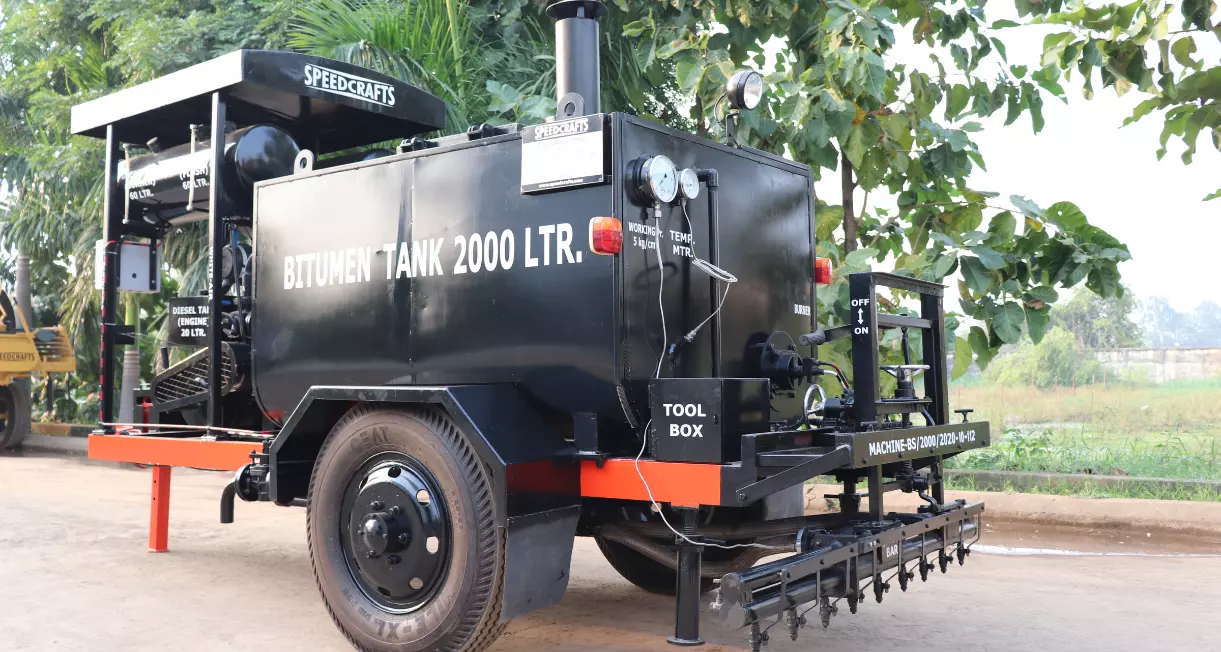

These are extremely compact and easy to maneuver Trolley Mounted Bitumen Spraying Machines, equipped with 2000 L Tank capacity.
| TECHNICAL DATA | |
| Tank capacity | 2000 L, 4 mm shell thickness |
| Tank shape | Rectangular with 50 mm Glasswool insulation |
| Temperature | Dial type thermometer 0 to 250° С |
| Engine | 4 stroke, 25 HP @ 2000 rpm |
| Bitumen pump | Gear type, 200 L/min capacity. |
| Compressor | Single cylinder 3 HP, pressure 9 Kg/Sq. cm, capacity 280 LPM |
| Spray bar width | 1.3 to 2.0 m |
| Spray bar type | Detachable type fitted with pressure gauge. |
| Hand lances | 01 nо |
| Burner rating | 20 L/hr |
