| TECHNICAL SPECIFICATION | |||
| Model | WMM-60 | WMM-100 | WMM-160 |
| Output (TPH) | 60 | 100 | 160 |
| Cold Feed | |||
| Gathering Conveyor (mm) | 600 | 600 | 600 |
| Belt Feeder Width (mm) | 500 | 500 | 500 |
| No. of Bins | 4 | 4 | 4 |
| Bin Capacity (MT) | 8 | 10 | 12 |
| Slinger Conveyor | |||
| Conveyor Width (mm) | 600 | 600 | 600 |
| Pugmill | |||
| Capacity (cu.m) | 1.4 | 1.6 | 1.9 |
| No. of Arms | 20 | 26 | 32 |
| Mineral Filler Capacity (MT) | 2 | 3 | 5 |
| Power Requirements | |||
| 4 Bin Feeder (HP) | 4 x 1.5 | 4 x 1.5 | 4 x 2 |
| Gathering Conveyor (HP) | 5 | 5 | 7.5 |
| Slinger Conveyor (HP) | 5 | 5 | 7.5 |
| Vibrating Screen (HP) | 0.5 | 0.5 | 0.5 |
| Pug Mill Drive (HP) | 15 | 25 | 50 |
| Hydraulic Power Pack (HP) | 3 | 3 | 3 |
| Water Pump (HP) | 2 | 3 | 5 |
| Blower (HP) | 2 | 2 | 3 |
| Higher capacity Plants offered on request | |||

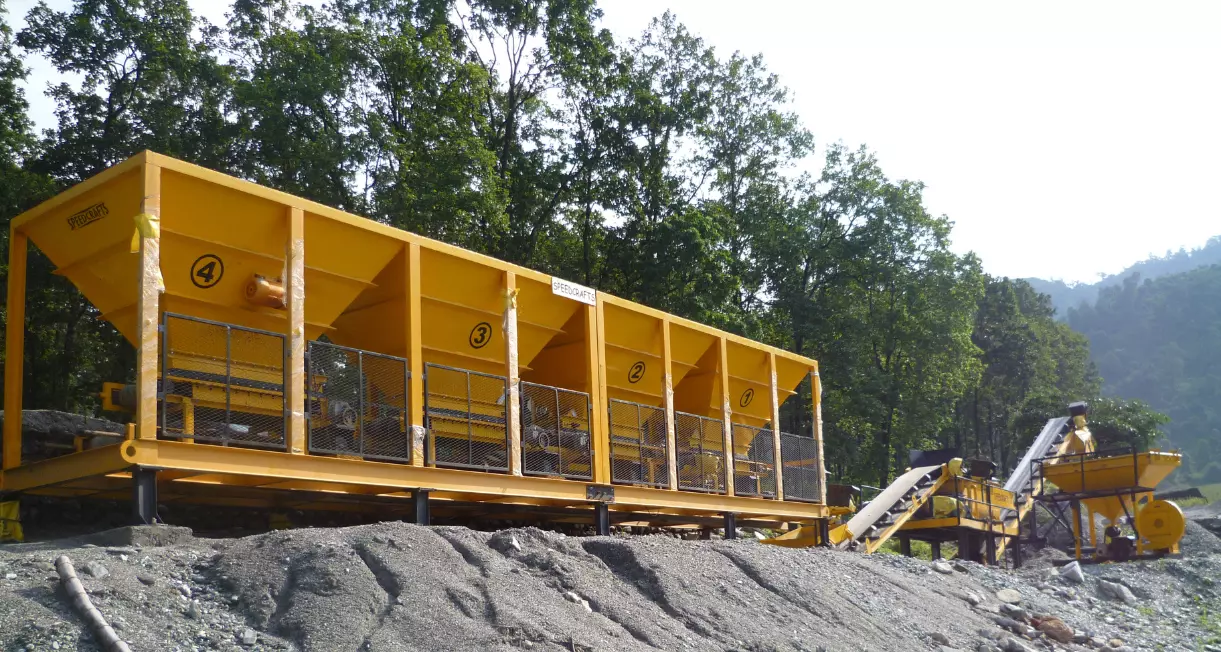

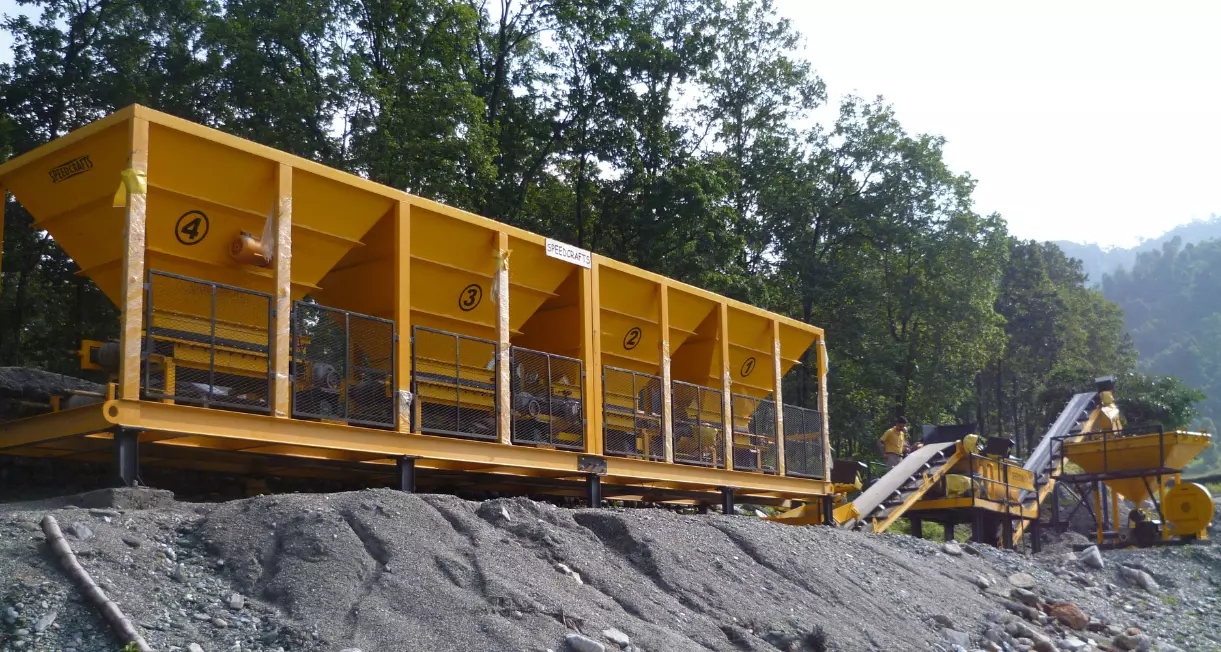

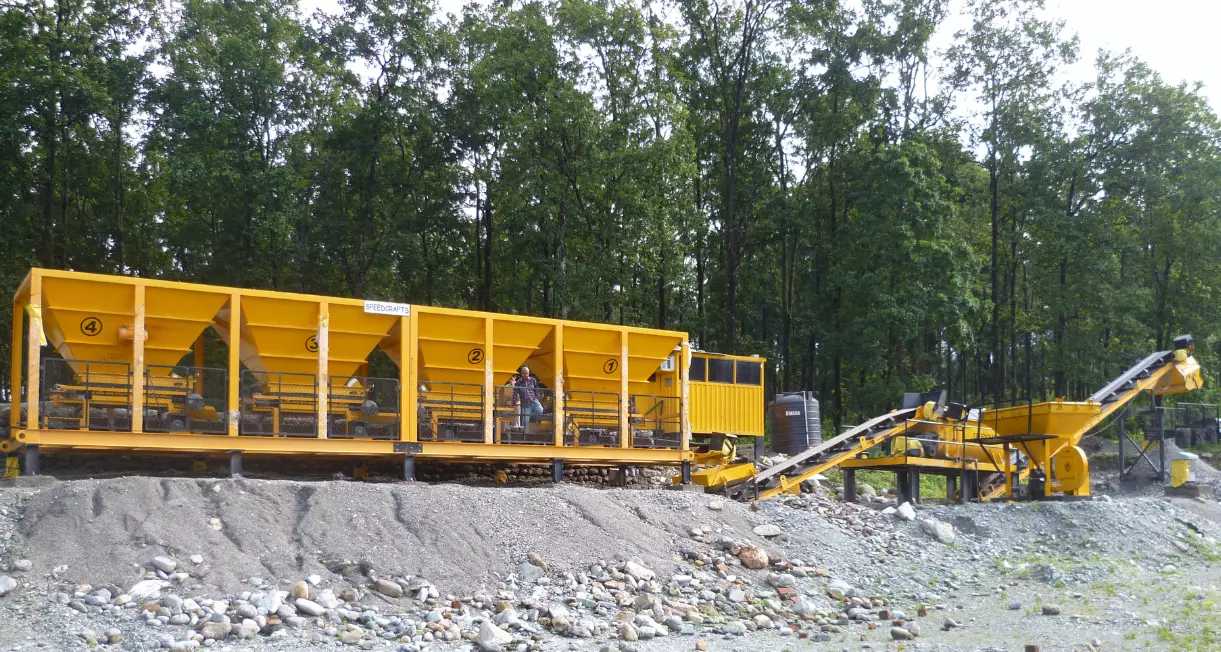

It is of single chassis construction. At each Bin a radial gate is provided which can be opened in any position to regulate the aggregate flow. Individual endless belts are provided, below the gates to discharge material onto the gathering belt.
A single-deck vibrating screen is provided on the slinger conveyor to remove oversize aggregates received from the 4-bin feeder.

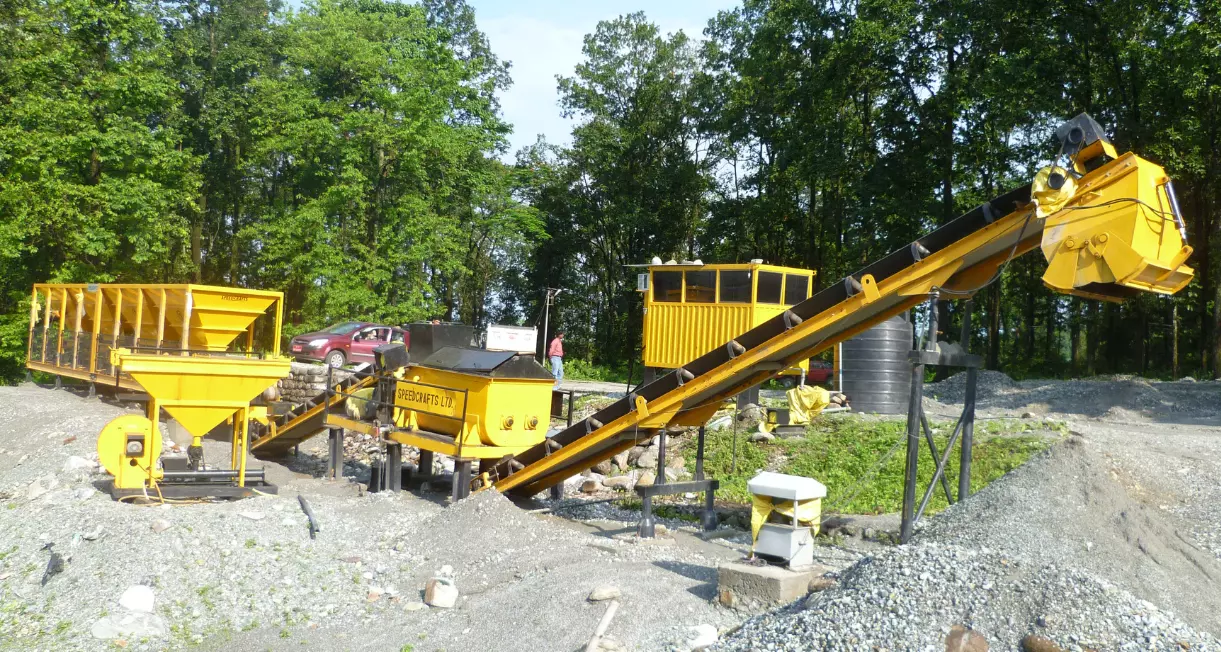

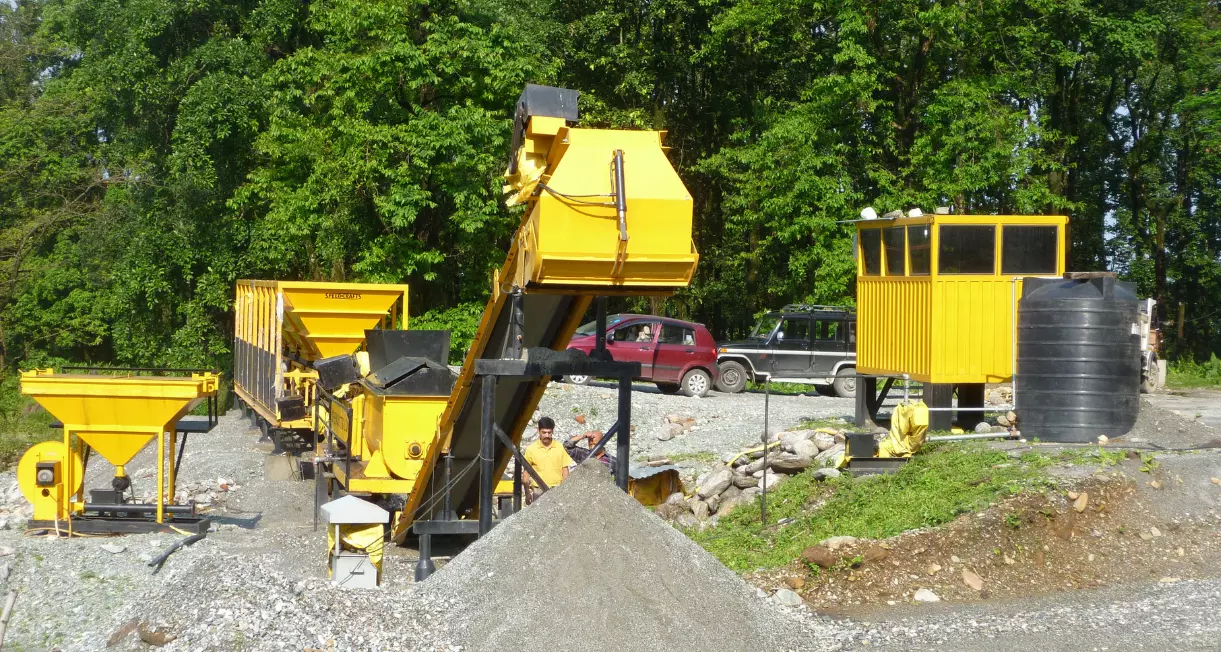

An inclined conveyor with 600 mm wide belt mounted on idlers receives aggregate from the gathering conveyor and feeds it to the pug mill.

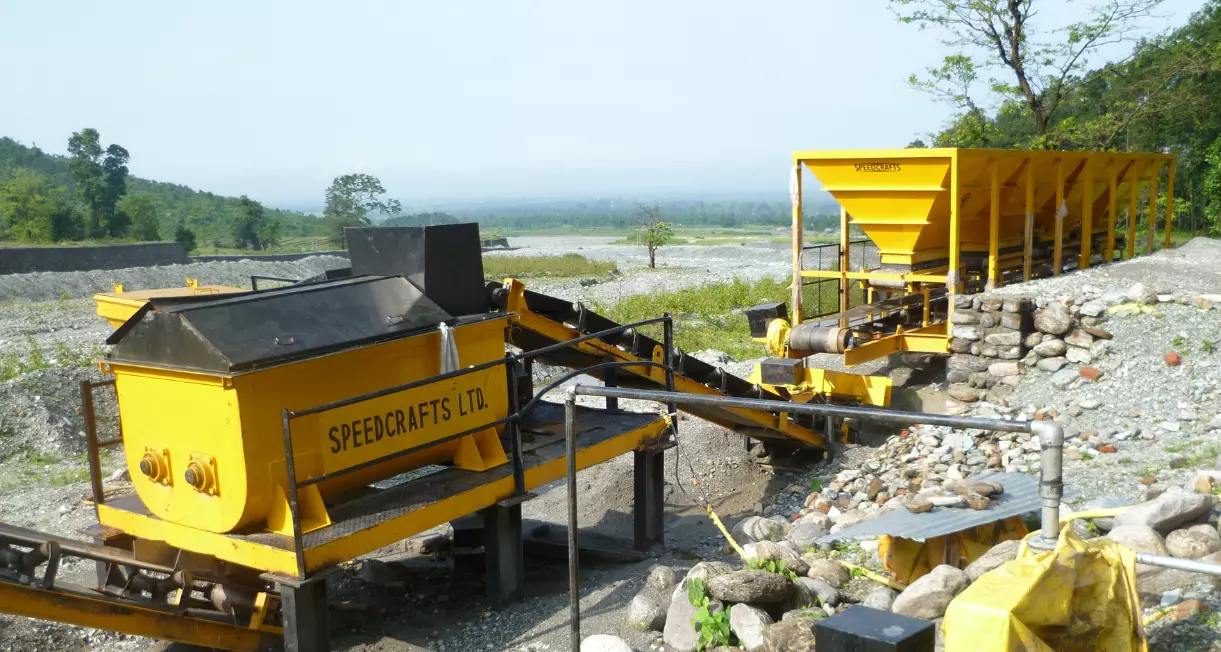

A twin shaft pug mill mounted on antifriction bearing provides quick, continuous and homogeneous mix of aggregates and additives.
Fabricated from steel plates, it feeds the required quantity of additives to the pug mill.
A fully automatic Control Panel is provided to control quantity and quality of production with operator sitting in air conditioned comfort.
